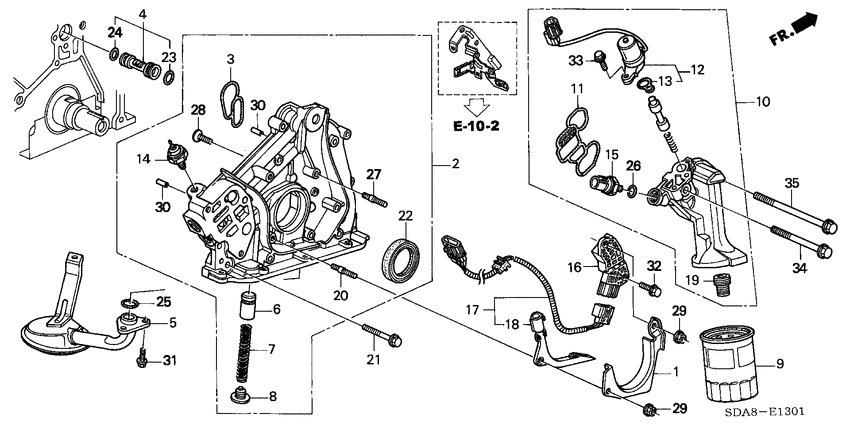

Oil pump (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14535-RCA-A00 PlateTIMING BELT STOPPER |
14535-RCA-A00 |
US $6.44 |
||
|
2
|
2
15100-RCA-A02
Pump assy.
|
15100-RCA-A02 |
— | ||
| replacement | |||||
|
2
|
2
15100-RCA-A03 Pump assy.OIL (YAMADA) |
15100-RCA-A03 |
US $390.46 |
||
|
3
|
3
15115-P8A-A01 PackingOIL HOLE |
15115-P8A-A01 |
from US $3.26 |
||
|
4
|
4
15150-P8A-A00 Joint assy.OIL PIPE |
15150-P8A-A00 |
from US $14.69 |
||
|
5
|
5
15220-RCA-A00
Strainer comp.
|
15220-RCA-A00 |
— | ||
|
6
|
6
15231-PE0-000 ValveRELIEF |
15231-PE0-000 |
from US $5.93 |
||
|
7
|
7
15232-PG6-000 SpringRELIEF VALVE |
15232-PG6-000 |
from US $2.65 |
||
|
8
|
8
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
9
|
9
15400-RTA-004
Cartridge
|
15400-RTA-004 |
— | ||
| replacements | |||||
|
9
|
9
15400-PLM-A02 OIL FILTER (HONEYWELL) |
15400-PLM-A02 |
from US $8.10 |
||
|
9
|
9
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
10
|
10
15811-RCA-A01
Valve assy.
|
15811-RCA-A01 |
— | ||
|
11
|
11
15825-P8A-A01 Filter assySPOOL VALVE |
15825-P8A-A01 |
from US $21.19 |
||
|
12
|
12
36171-P8E-A01 Solenoid assy. |
36171-P8E-A01 |
US $129.78 |
||
|
13
|
13
36172-P8A-A01 PackingSOLENOID BASE |
36172-P8A-A01 |
from US $2.95 |
||
|
14
|
14
37240-PT0-023
Switch
|
37240-PT0-023 |
— | ||
| replacement | |||||
|
14
|
14
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
15
|
15
37250-PR3-003 Switch assyVALVE TIMING OIL PRESSURE |
37250-PR3-003 |
US $95.58 |
||
|
16
|
16
37500-RCA-A01 Sensor assyCRANK(1-2) |
37500-RCA-A01 |
from US $190.72 |
||
|
17
|
17
37501-RCA-A01
Sub harness
|
37501-RCA-A01 |
— | ||
|
18
|
18
37503-RCA-A00 HolderCRANK SENSOR HARNESS |
37503-RCA-A00 |
US $6.16 |
||
|
19
|
19
90015-PH1-013 HolderOIL FILTER |
90015-PH1-013 |
from US $3.26 |
||
|
20
|
20
90042-RCA-A01 BoltSTUD, 6X14 |
90042-RCA-A01 |
US $1.47 |
||
|
21
|
21
90051-P8A-A00 BoltFLANGE, 6X35 (SEAL) |
90051-P8A-A00 |
US $1.33 |
||
|
22
|
22
91212-RCA-A02 Oil seal41X56X7 (NOK) |
91212-RCA-A02 |
US $13.22 |
||
| replacement | |||||
|
22
|
22
91212-5MR-A01 OIL SEAL 41X56X7 |
91212-5MR-A01 |
US $9.02 |
||
|
23
|
23
91308-P8A-A01 O-ring18.3X3.5 |
91308-P8A-A01 |
from US $2.44 |
||
|
24
|
24
91309-P8A-A01 O-ring16.3X3.5 |
91309-P8A-A01 |
from US $2.44 |
||
|
25
|
25
91310-PH7-000 O-ring19.8X2.4 |
91310-PH7-000 |
from US $2.15 |
||
|
26
|
26
91319-PR3-000
O-ring
|
91319-PR3-000 |
— | ||
| replacement | |||||
|
26
|
26
91319-PR3-003 O-ring13X1.5 (ARAI) |
91319-PR3-003 |
from US $2.44 |
||
|
27
|
27
92900-06016-1B BoltSTUD, 6X16 |
92900-06016-1B |
US $0.59 |
||
|
28
|
28
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
29
|
29
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
30
|
30
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
31
|
31
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
32
|
32
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
33
|
33
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
34
|
34
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
35
|
35
95701-080-750-8 BoltFLANGE, 8X75 |
95701-080-750-8 |
from US $0.89 |
||
