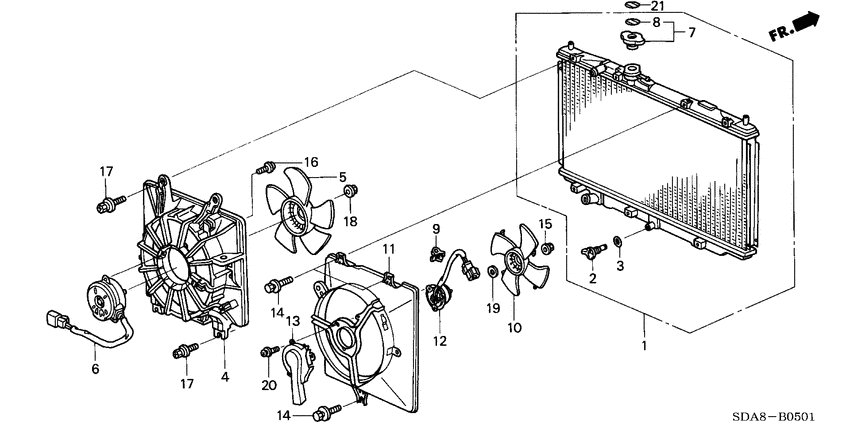

Radiator (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-RCA-A53
Radiator comp
|
19010-RCA-A53 |
— | ||
|
2
|
2
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
from US $1.85 |
||
|
4
|
4
19015-RCA-A01
Shroud comp.
|
19015-RCA-A01 |
— | ||
|
5
|
5
19020-RCA-A01 FanCOOLING |
19020-RCA-A01 |
US $39.94 |
||
|
6
|
6
19030-RCA-A01 MotorCOOLING FAN |
19030-RCA-A01 |
US $261.12 |
||
|
7
|
7
19045-RAA-003 Cap comp.RADIATOR (DENSO) |
19045-RAA-003 |
from US $17.50 |
||
|
8
|
8
19046-RAA-A00 LabelRADIATOR CAP |
19046-RAA-A00 |
from US $1.47 |
||
|
9
|
9
32175-647-920 ClipWIRE HARNESS |
32175-647-920 |
US $2.50 |
||
| replacement | |||||
|
9
|
9
30701-883-000 Clip, high tension cord (8mm) |
30701-883-000 |
US $4.47 |
||
|
10
|
10
38611-RCA-A01 Fan compCOOLING |
38611-RCA-A01 |
US $42.88 |
||
|
11
|
11
38615-RCA-A00
Shroud comp.
|
38615-RCA-A00 |
— | ||
|
12
|
12
38616-P8C-A01 MotorCOOLING FAN (MITSUBA) |
38616-P8C-A01 |
US $250.88 |
||
|
13
|
13
38619-RCA-A00 ProtectorFAN MOTOR |
38619-RCA-A00 |
US $11.06 |
||
|
14
|
14
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
15
|
15
90041-PAA-A01 NutTOOTHED, 5MM |
90041-PAA-A01 |
US $1.47 |
||
|
16
|
16
90041-P3G-003 Screw-washer5X11 |
90041-P3G-003 |
US $1.41 |
||
|
17
|
17
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
18
|
18
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
19
|
19
90430-P8C-A01
Washer
|
90430-P8C-A01 |
— | ||
|
20
|
20
93893-040-080-8 Screw-washer4X8 |
93893-040-080-8 |
from US $0.52 |
||
|
21
|
21
19046-RAD-D00 LabelRADIATOR CAP |
19046-RAD-D00 |
US $1.47 |
||
