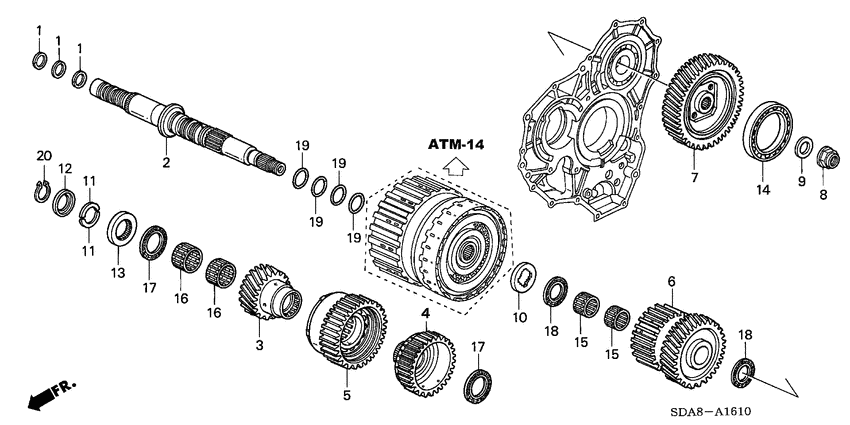

Secondary shaft (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22816-P6H-003 RingSEAL (35MM) |
22816-P6H-003 |
US $5.32 |
||
|
2
|
2
23230-RAY-A00
Shaft comp.
|
23230-RAY-A00 |
— | ||
|
3
|
3
23411-RAY-A00 GearSECONDARY SHAFT LOW |
23411-RAY-A00 |
US $113.92 |
||
|
4
|
4
23418-RAY-000 HubCLUTCH (L-H) |
23418-RAY-000 |
US $75.52 |
||
|
5
|
5
23420-RDG-005 Hub compSECONDARY SHAFT LOW CLUTCH |
23420-RDG-005 |
US $242.35 |
||
|
6
|
6
23431-RAY-A00 GearSECONDARY SHAFT SECOND |
23431-RAY-A00 |
US $127.36 |
||
|
7
|
7
23495-RGR-000 GearSECONDARY SHAFT IDLE |
23495-RGR-000 |
US $81.92 |
||
|
8
|
8
90203-P0Z-000 NutFLANGE, 24MM (LEFT HAND THREAD) |
90203-P0Z-000 |
US $7.56 |
||
|
9
|
9
90402-P0Z-000
Washer
|
90402-P0Z-000 |
— | ||
|
10
|
10
90408-P0Z-000
Washer
|
90408-P0Z-000 |
— | ||
|
10
|
10
90410-P0Z-000
Washer
|
90410-P0Z-000 |
— | ||
|
10
|
10
90412-P0Z-000
Washer
|
90412-P0Z-000 |
— | ||
|
10
|
10
90407-P0Z-000
Washer
|
90407-P0Z-000 |
— | ||
|
10
|
10
90409-P0Z-000
Washer
|
90409-P0Z-000 |
— | ||
|
10
|
10
90411-P0Z-000
Washer
|
90411-P0Z-000 |
— | ||
|
10
|
10
90406-P0Z-000
Washer
|
90406-P0Z-000 |
— | ||
|
11
|
11
90431-P0Z-000 Cotter32MM |
90431-P0Z-000 |
US $2.31 |
||
|
12
|
12
90432-P0Z-000 RetainerCOTTER |
90432-P0Z-000 |
US $2.31 |
||
|
13
|
13
90503-RAY-A00
Washer
|
90503-RAY-A00 |
— | ||
|
13
|
13
90504-RAY-A00
Washer
|
90504-RAY-A00 |
— | ||
|
13
|
13
90505-RAY-A00
Washer
|
90505-RAY-A00 |
— | ||
|
13
|
13
90506-RAY-A00
Washer
|
90506-RAY-A00 |
— | ||
|
13
|
13
90507-RAY-A00
Washer
|
90507-RAY-A00 |
— | ||
|
13
|
13
90502-RAY-A00
Washer
|
90502-RAY-A00 |
— | ||
|
14
|
14
91005-P7Z-003 BearingBALL, 65X88.5X10 |
91005-P7Z-003 |
US $38.40 |
||
|
15
|
15
91011-P7W-003 BearingNEEDLE, 34X40X20 |
91011-P7W-003 |
US $5.60 |
||
|
16
|
16
91012-P7W-003 BearingNEEDLE, 38X44X20 |
91012-P7W-003 |
US $7 |
||
|
17
|
17
91019-P7Z-003 BearingTHRUST NEEDLE, 38X57X2.5 |
91019-P7Z-003 |
US $7 |
||
|
18
|
18
91023-P7T-013 BearingTHRUST NEEDLE, 34X55.5X2.5 |
91023-P7T-013 |
US $7 |
||
|
19
|
19
91316-PR9-003 O-ring33X1.9 (ARAI) |
91316-PR9-003 |
US $1.54 |
||
|
20
|
20
94510-35000 CirclipEXTERNAL, 35MM |
94510-35000 |
from US $0.81 |
