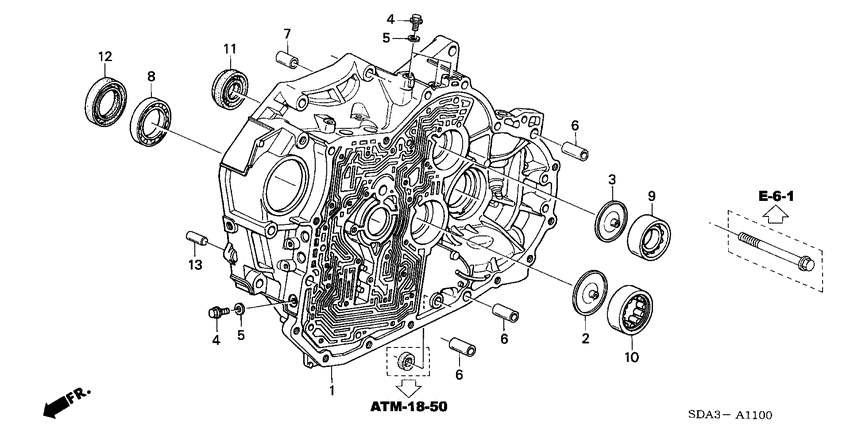

Torque converter case (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21111-RAX-010 CaseTORQUE CONVERTER |
21111-RAX-010 |
US $582.40 |
||
|
2
|
2
23225-P7W-000 PlateOIL GUIDE |
23225-P7W-000 |
US $3.01 |
||
|
3
|
3
23235-P0Z-000 PlateOIL GUIDE |
23235-P0Z-000 |
US $2.31 |
||
|
4
|
4
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
5
|
5
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
6
|
6
90705-PA9-000 Dowel pin14X25 |
90705-PA9-000 |
US $2.80 |
||
|
7
|
7
90705-PF4-000 Dowel pin14X20 |
90705-PF4-000 |
US $2.24 |
||
|
8
|
8
91001-PX4-004 BearingBALL, 40X68X9 (KOYO) |
91001-PX4-004 |
US $14.50 |
||
|
8
|
8
91001-PX4-003 BearingBALL, 40X68X9 (NTN) |
91001-PX4-003 |
US $13.72 |
||
|
9
|
9
91101-P0Z-003 BearingBALL, 34X60X22 |
91101-P0Z-003 |
US $15.36 |
||
|
10
|
10
91102-RGR-003 BearingNEEDLE, 38.5X67X21 |
91102-RGR-003 |
US $30.72 |
||
|
11
|
11
91206-P0Z-005 Oil seal35X54X8 (NOK) |
91206-P0Z-005 |
from US $7.70 |
||
|
12
|
12
91207-P7Z-003 Oil seal44X68X8 (NOK) |
91207-P7Z-003 |
from US $6.59 |
||
|
13
|
13
94302-10200 Dowel pin10X20 |
94302-10200 |
from US $1.04 |
