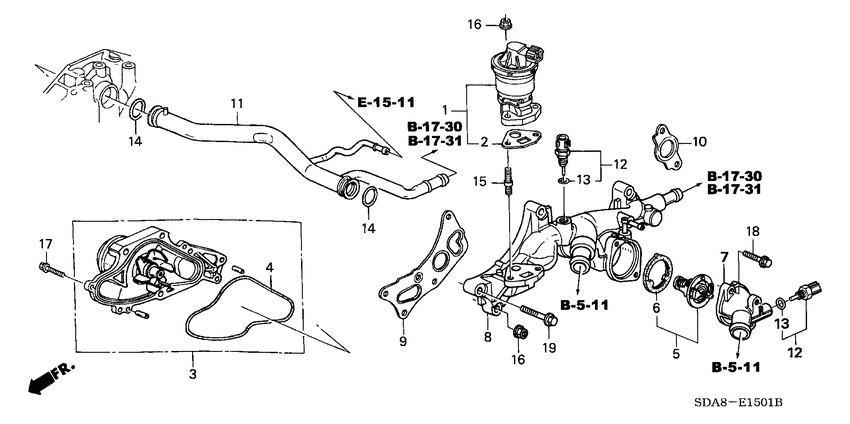

Water pump (V6) Diagram Honda ACCORD
- Year
- 2006
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18011-RCA-A00
Valve set
|
18011-RCA-A00 |
— | ||
|
2
|
2
18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) |
18715-PB2-000 |
from US $6.51 |
||
|
3
|
3
19200-RDV-J01 Water Pump comp. (YAMADA) |
19200-RDV-J01 |
from US $177.41 |
||
|
4
|
4
19222-P8A-A01 PackingWATER PUMP (YAMADA) |
19222-P8A-A01 |
from US $3.08 |
||
|
5
|
5
19301-P8E-A10 Thermostat assyNIPPON THERMOSTAT |
19301-P8E-A10 |
from US $55.08 |
||
|
6
|
6
19305-PR7-A00 RubberTHERMOSTAT MOUNTING |
19305-PR7-A00 |
from US $3.51 |
||
|
7
|
7
19311-RJA-A00 CoverTHERMOSTAT |
19311-RJA-A00 |
from US $23.55 |
||
|
8
|
8
19410-RCA-A50 Passage comp.WATER |
19410-RCA-A50 |
US $222.72 |
||
|
9
|
9
19411-P8A-A03 GasketFR. WATER PASSAGE (NIPPON LEAKLESS) |
19411-P8A-A03 |
from US $8.26 |
||
|
10
|
10
19412-P8A-A02 GasketRR. WATER PASSAGE (NIPPON LEAKLESS) |
19412-P8A-A02 |
from US $4.20 |
||
|
11
|
11
19505-P8E-A00 Pipe compCONNECTING |
19505-P8E-A00 |
from US $26.88 |
||
|
12
|
12
37870-PNA-003 Sensor assyWATER TEMP (KEIHIN) |
37870-PNA-003 |
from US $30.21 |
||
|
13
|
13
91307-PNA-003 O-ring9.5X1.9 |
91307-PNA-003 |
from US $1.39 |
||
|
14
|
14
91314-PH7-003 O-ring 31.2X4.1 (NOK)31.2X4.1 (NOK) |
91314-PH7-003 |
from US $2.28 |
||
|
15
|
15
92900-08022-0B BoltSTUD, 8X22 |
92900-08022-0B |
from US $0.74 |
||
|
16
|
16
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
17
|
17
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
18
|
18
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
19
|
19
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
