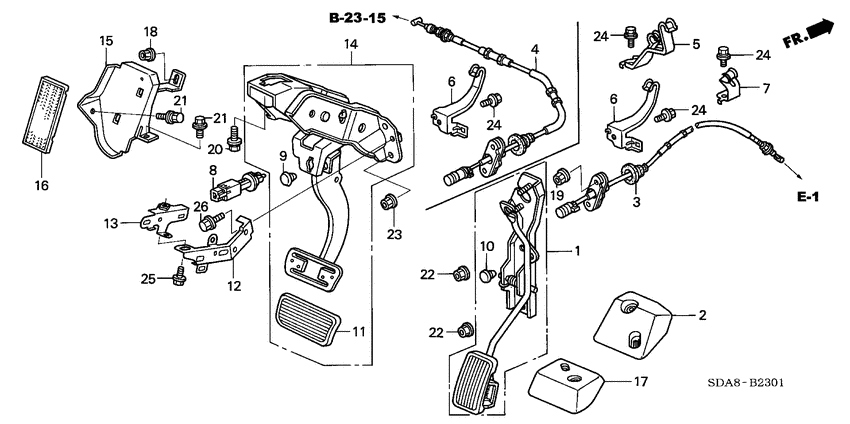

Pedal (RH) Diagram Honda ACCORD
- Year
- 2004
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- 3.0 SIR
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SDB-Q01 Pedal assyACCELERATOR |
17800-SDB-Q01 |
US $34.82 |
||
|
2
|
2
17818-SDA-Q01
Stopper
|
17818-SDA-Q01 |
— | ||
|
4
|
4
17910-SDB-Q02
Wire
|
17910-SDB-Q02 |
— | ||
|
6
|
6
17930-SDA-Q00
Stay
|
17930-SDA-Q00 |
— | ||
|
7
|
7
17931-SDA-Q00
Stay
|
17931-SDA-Q00 |
— | ||
|
8
|
8
35350-S5A-J01
Switch assy
|
35350-S5A-J01 |
— | ||
|
8
|
8
35350-S5A-J02
Switch assy
|
35350-S5A-J02 |
— | ||
|
9
|
9
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
10
|
10
46505-SA7-000 PadPEDAL STOPPER |
46505-SA7-000 |
US $3.92 |
||
|
11
|
11
46545-S84-A81 CoverPEDAL |
46545-S84-A81 |
from US $5.21 |
||
|
12
|
12
46597-SDC-Q01
Stay assy. a
|
46597-SDC-Q01 |
— | ||
|
13
|
13
46598-SDC-Q01
Stay assy. b
|
46598-SDC-Q01 |
— | ||
|
14
|
14
46600-SDA-Q83
Pedal assy
4C200049 - |
46600-SDA-Q83 |
— | ||
|
14
|
14
46600-SDA-Q82 Pedal assyBRAKE 00000000 - 4C200048 |
46600-SDA-Q82 |
US $82.56 |
||
|
15
|
15
46991-SDA-Q00 BracketFOOTREST |
46991-SDA-Q00 |
US $16.77 |
||
|
16
|
16
46992-S5A-013 PlateFOOTREST BRACKET |
46992-S5A-013 |
US $11.99 |
||
|
17
|
17
74255-SDC-Q01
Stopper
|
74255-SDC-Q01 |
— | ||
|
18
|
18
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
19
|
19
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
20
|
20
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
21
|
21
93405-060-140-7 Bolt-washer6X14 |
93405-060-140-7 |
US $0.59 |
||
|
22
|
22
90361-S3C-003 NutPAINT CUTTING, 8MM |
90361-S3C-003 |
US $1.19 |
||
|
23
|
23
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
24
|
24
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
25
|
25
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.62 |
||
|
26
|
26
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.62 |
