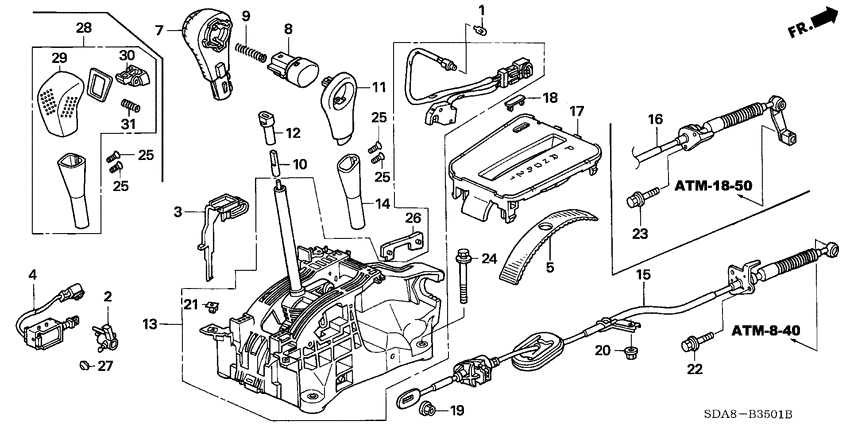

Select lever (RH) Diagram Honda ACCORD
- Year
- 2004
- Model code
- ACCORD
- Sales region
- General
- Engine
- J30A
- transmission
- 5AT
- Number of doors
- 4
- grade
- 3.0 SIR
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54070-SDC-A81 Bulb14V 1.4W |
54070-SDC-A81 |
from US $4.66 |
||
|
2
|
2
54023-SDC-A81
Stopper
|
54023-SDC-A81 |
— | ||
|
3
|
3
54030-SDC-A81 ReleaseSHIFT LOCK |
54030-SDC-A81 |
US $10.92 |
||
|
4
|
4
54040-SDC-A81
Solenoid assy.
|
54040-SDC-A81 |
— | ||
|
5
|
5
54050-SDC-A81 CoverSELECT LEVER |
54050-SDC-A81 |
US $6.44 |
||
|
7
|
7
54131-SDA-Q51
Knob comp, LEATHER
|
54131-SDA-Q51 |
— | ||
|
8
|
8
54132-SDA-Q81 Knob comp.PUSH |
54132-SDA-Q81 |
US $27.28 |
||
|
9
|
9
54133-SDA-A81 Spring |
54133-SDA-A81 |
US $3.96 |
||
|
10
|
10
54140-SV4-980 CapLOCK PIN |
54140-SV4-980 |
US $10.92 |
||
|
11
|
11
54141-SDA-Q81 Plate |
54141-SDA-Q81 |
US $35.07 |
||
|
12
|
12
54141-SV4-980 BushKNOB SETTING |
54141-SV4-980 |
from US $2.44 |
||
|
13
|
13
54200-SDC-Q81 Bracket comp.BASE |
54200-SDC-Q81 |
US $131.84 |
||
|
14
|
14
54217-SDA-A81 Pipe |
54217-SDA-A81 |
US $30.98 |
||
|
16
|
16
54315-SDB-A84
Wire
|
54315-SDB-A84 |
— | ||
|
17
|
17
54710-SDC-Q81 Escutcheon comp. |
54710-SDC-Q81 |
US $55.68 |
||
|
18
|
18
54716-SDC-A81 LidESCUTCHEON |
54716-SDC-A81 |
US $6.69 |
||
|
19
|
19
90351-SB2-003 NutFLANGE, 8MM |
90351-SB2-003 |
from US $2.31 |
||
|
20
|
20
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
21
|
21
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
23
|
23
93403-060-300-8 Bolt-washer6X30 |
93403-060-300-8 |
US $0.74 |
||
|
24
|
24
93405-080-350-8 Bolt-washer8X35 |
93405-080-350-8 |
US $0.81 |
||
|
25
|
25
93600-050-080-G ScrewFLAT, 5X8 |
93600-050-080-G |
from US $0.37 |
||
|
26
|
26
54020-SDC-A81 PlateDETENT |
54020-SDC-A81 |
US $34.82 |
||
|
27
|
27
54032-SEA-981 CushionSHIFT LOCK |
54032-SEA-981 |
US $10.50 |
