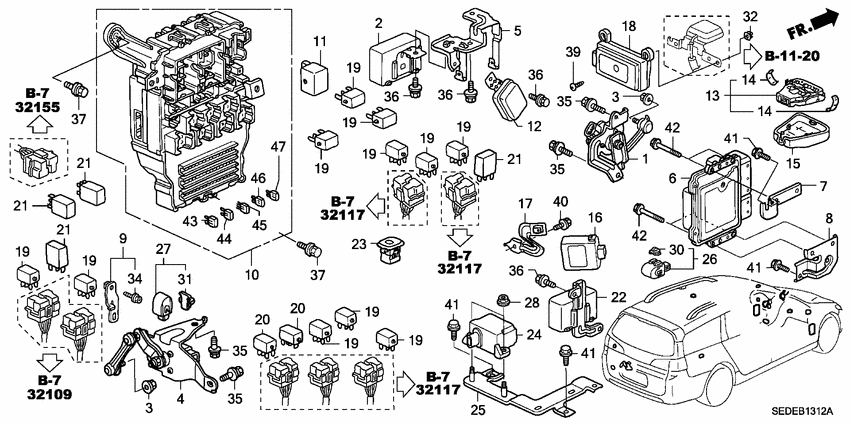

Control unit (CABIN; DIESEL; LH) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD TOURER
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 2.2 SPORT SE
- area code
- KG
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
36701-SEA-G00 BracketUNIT |
36701-SEA-G00 |
US $13.58 |
||
|
6
|
6
37820-RBD-E93
Control module
00000000 - 8C200057 |
37820-RBD-E93 |
— | ||
|
6
|
6
37820-RBD-E94
Control module
8C200058 - |
37820-RBD-E94 |
— | ||
|
7
|
7
37821-RBD-G00 BracketENGINE CONTROL MODULE UPPER |
37821-RBD-G00 |
US $7.70 |
||
|
8
|
8
37822-RBD-G00 BracketENGINE CONTROL MODULE LOWER |
37822-RBD-G00 |
US $7.70 |
||
|
9
|
9
38183-SED-000 BracketCARGO LIGHT RELAY |
38183-SED-000 |
US $5.04 |
||
|
10
|
10
38200-SEF-S11 Box assyFUSE |
38200-SEF-S11 |
US $500.48 |
||
|
10
|
10
38200-SEF-G45 Box assyFUSE |
38200-SEF-G45 |
US $500.48 |
||
|
11
|
11
38300-SDC-A02 Relay assyTURN SIGNAL & HAZARD (DENSO) |
38300-SDC-A02 |
US $43.01 |
||
|
11
|
11
38300-SHJ-A04 Relay assyTURN SIGNAL & HAZARD (MITSUBA) |
38300-SHJ-A04 |
US $43.01 |
||
|
12
|
12
38310-SEA-G01 RelayCLEANER CONTROL |
38310-SEA-G01 |
US $112 |
||
|
13
|
13
38970-SJA-003 Sensor assyRAIN |
38970-SJA-003 |
US $380.16 |
||
|
14
|
14
38971-S3V-A01 ClipSPRING |
38971-S3V-A01 |
US $3.78 |
||
|
15
|
15
38980-SEA-000ZA CoverRAIN SENSOR *NH167L* |
38980-SEA-000ZA |
US $11.06 |
||
|
16
|
16
39720-SEA-E02 Imoes unit |
39720-SEA-E02 |
US $59.01 |
||
|
17
|
17
39721-SEA-G00 BracketIMOES UNIT |
39721-SEA-G00 |
US $6.16 |
||
|
18
|
18
39770-SEA-E01 Hft unitBLUETOOTH |
39770-SEA-E01 |
US $1,568 |
||
|
19
|
19
39794-SDA-A02 Relay assyPOWER(MICRO ISO) (DENSO) |
39794-SDA-A02 |
US $15.23 |
||
|
19
|
19
39794-SDA-A05 Relay assyPOWER(MICRO ISO) (MITSUBA) |
39794-SDA-A05 |
from US $16.18 |
||
|
20
|
20
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
|
20
|
20
39794-SDA-901
Relay assy, ENGINE CONTROL MODULE (MITSUBA)
|
39794-SDA-901 |
— | ||
| replacement | |||||
|
20
|
20
39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) |
39794-SDA-902 |
from US $16.18 |
||
|
21
|
21
39794-S10-003 Relay assyPOWER(5P) (MICRO ISO)(MITSUBA) |
39794-S10-003 |
US $16.18 |
||
|
24
|
24
39960-SEF-003 Sensor assyCLUSTER |
39960-SEF-003 |
US $771.84 |
||
|
25
|
25
39961-SEF-G00 BracketYAW & G SENSOR |
39961-SEF-G00 |
US $8.82 |
||
|
28
|
28
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
from US $1.47 |
||
|
32
|
32
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
from US $1.26 |
||
|
34
|
34
92301-06016-0A BoltRECESSED, 6X16 |
92301-06016-0A |
from US $0.52 |
||
|
36
|
36
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.65 |
||
|
37
|
37
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.65 |
||
|
39
|
39
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.38 |
||
|
40
|
40
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
41
|
41
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
||
|
42
|
42
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
43
|
43
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
44
|
44
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.55 |
||
|
45
|
45
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.55 |
||
|
46
|
46
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.55 |
||
|
47
|
47
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.78 |
||
