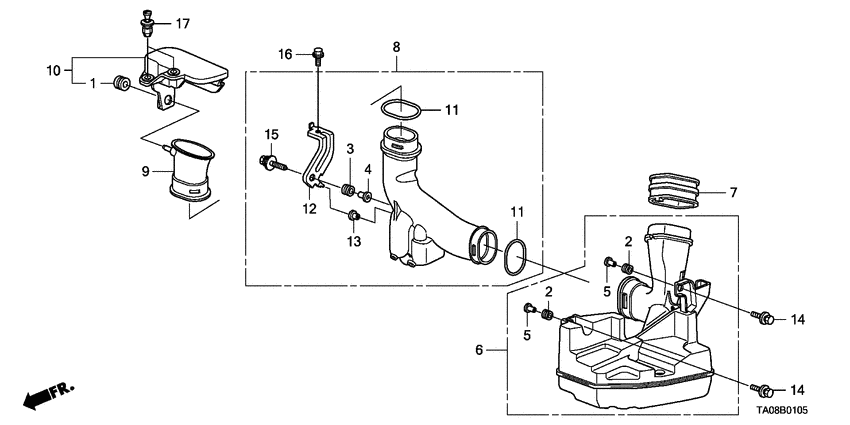

Resonator chamber (2.0L) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- R20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0 EX
- abs
- +
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17212-PE2-000 Rubber aAIR CLEANER CASE MOUNTING |
17212-PE2-000 |
US $2.38 |
||
|
2
|
2
17212-PLC-000 RubberAIR CLEANER MOUNTING |
17212-PLC-000 |
US $2.31 |
||
|
3
|
3
17213-PD1-000 RubberAIR CLEANER CASE MOUNTING |
17213-PD1-000 |
US $2.80 |
||
|
4
|
4
17216-PE2-003 CollarAIR CLEANER(TOYO ROKI) |
17216-PE2-003 |
from US $2.10 |
||
|
5
|
5
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
6
|
6
17230-R60-U00 Chamber assyRESONATOR |
17230-R60-U00 |
US $112 |
||
|
7
|
7
17251-R60-U00
Tube
|
17251-R60-U00 |
— | ||
|
8
|
8
17253-R60-U00
Tube assy. b
|
17253-R60-U00 |
— | ||
|
9
|
9
17254-R60-U00
Tube c
|
17254-R60-U00 |
— | ||
|
10
|
10
17255-R60-U00 Cover assy.SPLASH |
17255-R60-U00 |
US $16.64 |
||
|
11
|
11
17256-RBB-A00 RingSEAL |
17256-RBB-A00 |
US $3.57 |
||
|
12
|
12
17256-R60-U00
Stay comp
|
17256-R60-U00 |
— | ||
|
13
|
13
17263-P0A-000 RubberAIR CLEANER STAY |
17263-P0A-000 |
US $1.61 |
||
|
14
|
14
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $2.52 |
||
|
15
|
15
90005-P28-A00 Bolt-washerSPECIAL, 6X28 |
90005-P28-A00 |
US $1.78 |
||
|
16
|
16
90120-PZA-000 BoltFLANGE, 6X12 |
90120-PZA-000 |
US $1.19 |
||
|
17
|
17
90601-R60-U01 ClipAIR INTAKE COVER |
90601-R60-U01 |
US $3.42 |
