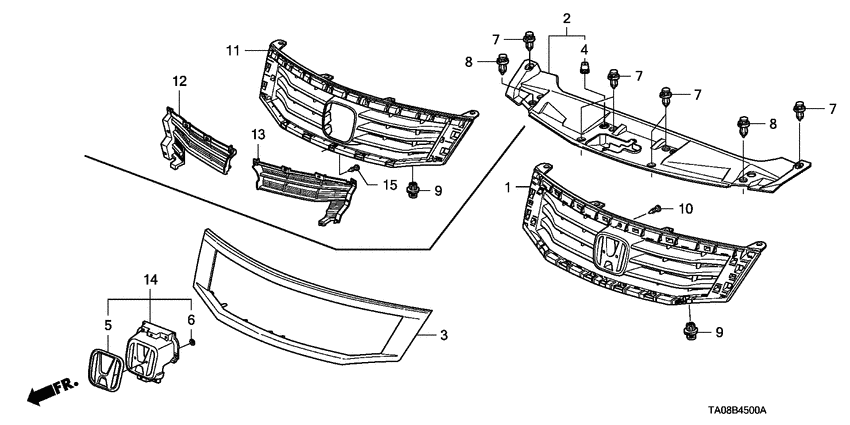

Front grille Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71121-TA0-A00 BaseFR. GRILLE |
71121-TA0-A00 |
US $152.32 |
||
|
2
|
2
71123-TA0-A00 CoverFR. GRILLE |
71123-TA0-A00 |
US $38.40 |
||
|
3
|
3
71126-TA0-A00 MoldingFR. GRILLE |
71126-TA0-A00 |
US $165.12 |
||
|
4
|
4
74175-SJA-000 CushionHOOD |
74175-SJA-000 |
from US $3.42 |
||
|
5
|
5
75700-TA0-A00 EmblemFR. (H) |
75700-TA0-A00 |
from US $18.14 |
||
|
6
|
6
90301-ST0-003 push nut, 3mm |
90301-ST0-003 |
from US $1.24 |
||
|
7
|
7
91505-S9A-003 Clip ABUMPER |
91505-S9A-003 |
from US $2.50 |
||
|
8
|
8
91506-S9A-003 Clip bBUMPER |
91506-S9A-003 |
from US $2 |
||
|
9
|
9
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $2.44 |
||
|
10
|
10
93903-243J0 ScrewTAPPING, 4X12 |
93903-243J0 |
from US $0.67 |
