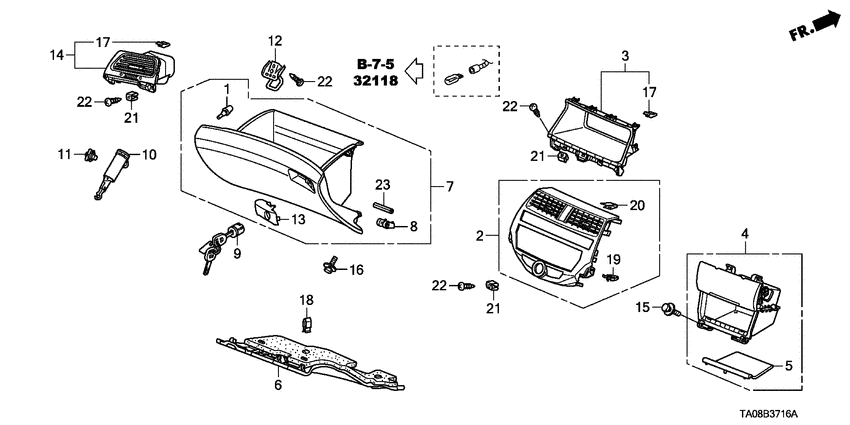

Instrument panel garnish (PASSENGER SIDE; RH) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66418-SB2-000
Stopper
|
66418-SB2-000 |
— | ||
|
2
|
2
77250-TA0-J02ZA
Panel assy.
8C201315 - |
77250-TA0-J02ZA |
— | ||
|
2
|
2
77250-TA0-J01ZH Panel assy.CENTER *YR327L 3* 00000000 - 8C201314 |
77250-TA0-J01ZH |
US $213.76 |
||
|
2
|
2
77250-TA0-J02ZH Panel assy.CENTER *YR327L 3* 8C201315 - |
77250-TA0-J02ZH |
US $213.76 |
||
|
2
|
2
77250-TA0-J01ZA Panel assy.CENTER *NH167L 1* 00000000 - 8C201314 |
77250-TA0-J01ZA |
US $213.76 |
||
|
3
|
3
77255-TA0-A01ZA
Visor assy
|
77255-TA0-A01ZA |
— | ||
|
4
|
4
77280-TA0-J01ZB Pocket assyCENTER *YR392L 1* |
77280-TA0-J01ZB |
US $128 |
||
|
4
|
4
77280-TA0-J01ZC
Pocket assy
|
77280-TA0-J01ZC |
— | ||
|
5
|
5
77281-TA0-A01ZA Mat *nh167l* |
77281-TA0-A01ZA |
US $8.26 |
||
|
6
|
6
77346-TA1-003 CoverPASSENGER UNDER |
77346-TA1-003 |
US $31.62 |
||
|
7
|
7
77500-TA0-U01ZA Box assyGLOVE *NH167L* |
77500-TA0-U01ZA |
US $153.60 |
||
|
7
|
7
77500-TA0-U01ZC Box assyGLOVE *YR327L* |
77500-TA0-U01ZC |
US $153.60 |
||
|
8
|
8
77515-TA0-A01 HingeGLOVE BOX |
77515-TA0-A01 |
US $2.87 |
||
|
9
|
9
77520-TA0-A01 CylinderGLOVE BOX |
77520-TA0-A01 |
US $22.14 |
||
|
10
|
10
77531-TA0-Y01 DamperGLOVE BOX |
77531-TA0-Y01 |
US $12.60 |
||
|
11
|
11
77532-TA0-003 Collar |
77532-TA0-003 |
US $1.33 |
||
|
12
|
12
77541-TA0-A00
Striker comp.
|
77541-TA0-A00 |
— | ||
|
13
|
13
77545-TA0-003ZA KnobGLOVE BOX *NH167L* |
77545-TA0-003ZA |
US $6.16 |
||
|
13
|
13
77545-TA0-003ZC KnobGLOVE BOX *YR327L* |
77545-TA0-003ZC |
US $6.16 |
||
|
14
|
14
77630-TA0-J02ZD Outlet assyPASSENGER SIDE *NH167L 1* 8C201315 - |
77630-TA0-J02ZD |
US $48.26 |
||
|
14
|
14
77630-TA0-J01ZD Outlet assyPASSENGER SIDE *NH167L 1* 00000000 - 8C201314 |
77630-TA0-J01ZD |
US $67.20 |
||
|
15
|
15
90139-SM4-003 Bolt-washer5X20 |
90139-SM4-003 |
from US $1.33 |
||
|
16
|
16
90140-SDA-A00 Bolt-washer5X19 |
90140-SDA-A00 |
from US $1.39 |
||
|
17
|
17
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
18
|
18
90666-TA0-A01 ClipSNAP FITTING (PO) (ORANGE) |
90666-TA0-A01 |
US $1.33 |
||
|
19
|
19
90666-TA0-A11 ClipSNAP FITTING (PO) (ORANGE) |
90666-TA0-A11 |
from US $1.33 |
||
|
20
|
20
90666-TA0-A21 ClipSNAP FITTING (PO) (ORANGE) |
90666-TA0-A21 |
US $1.33 |
||
|
21
|
21
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
22
|
22
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
23
|
23
94305-50302 PinSPRING, 5X30 |
94305-50302 |
from US $0.89 |
