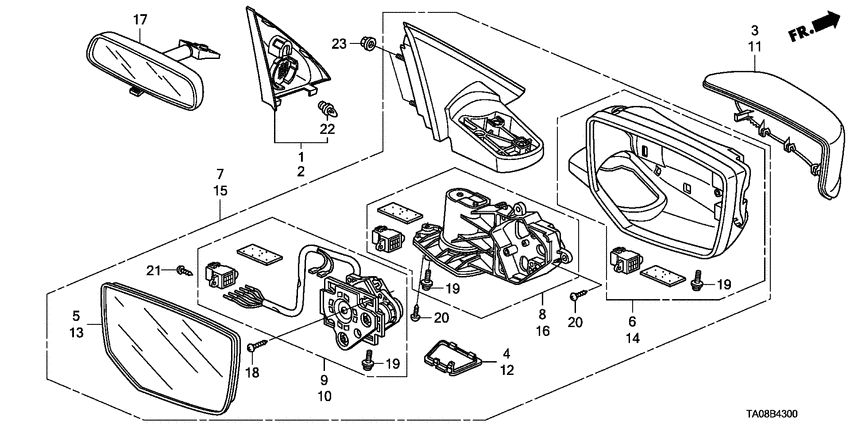

Mirror (1) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72443-TA0-A01ZA CoverR. FR. DOOR TWEETER *NH167L* |
72443-TA0-A01ZA |
US $12.18 |
||
|
2
|
2
72483-TA0-A01ZA CoverL. FR. DOOR TWEETER *NH167L* |
72483-TA0-A01ZA |
US $12.18 |
||
|
3
|
3
76201-TC0-Q01ZE CapR. SKULL *NH737M* |
76201-TC0-Q01ZE |
US $42.37 |
||
|
3
|
3
76201-TC0-Q01ZG CapR. SKULL *YR574M* |
76201-TC0-Q01ZG |
US $42.37 |
||
|
3
|
3
76201-TC0-Q01ZB CapR. SKULL *B92P* |
76201-TC0-Q01ZB |
US $42.37 |
||
|
3
|
3
76201-TC0-Q01ZD CapR. SKULL *NH700M* |
76201-TC0-Q01ZD |
US $45.02 |
||
|
3
|
3
76201-TC0-Q01ZA CapR. SKULL *B536P* |
76201-TC0-Q01ZA |
US $42.37 |
||
|
3
|
3
76201-TC0-Q01ZC CapR. SKULL *NH624P* |
76201-TC0-Q01ZC |
US $42.37 |
||
|
4
|
4
76202-TA0-A01 CoverR. BASE |
76202-TA0-A01 |
US $4.34 |
||
|
5
|
5
76203-TC0-Q01 Mirror compR. (R1400) |
76203-TC0-Q01 |
US $30.34 |
||
|
6
|
6
76206-TA0-U11 Housing setR. |
76206-TA0-U11 |
US $33.66 |
||
|
7
|
7
76208-TA0-U11 Mirror assyR. (AUTO TURN) (R1400) |
76208-TA0-U11 |
US $371.20 |
||
|
8
|
8
76208-TC5-D01
Turn set
|
76208-TC5-D01 |
— | ||
|
9
|
9
76210-TC5-D01 Actuator comp.R. (R1400) |
76210-TC5-D01 |
US $71.68 |
||
|
10
|
10
76215-TC5-D01 Actuator comp.L. (R1400) |
76215-TC5-D01 |
US $71.68 |
||
|
11
|
11
76251-TC0-Q01ZG CapL. SKULL *YR574M* |
76251-TC0-Q01ZG |
US $42.37 |
||
|
11
|
11
76251-TC0-Q01ZB CapL. SKULL *B92P* |
76251-TC0-Q01ZB |
US $42.37 |
||
|
11
|
11
76251-TC0-Q01ZD CapL. SKULL *NH700M* |
76251-TC0-Q01ZD |
US $42.37 |
||
|
11
|
11
76251-TC0-Q01ZA CapL. SKULL *B536P* |
76251-TC0-Q01ZA |
US $42.37 |
||
|
11
|
11
76251-TC0-Q01ZC CapL. SKULL *NH624P* |
76251-TC0-Q01ZC |
US $42.37 |
||
|
11
|
11
76251-TC0-Q01ZE CapL. SKULL *NH737M* |
76251-TC0-Q01ZE |
US $42.37 |
||
|
12
|
12
76252-TA0-A01 CoverL. BASE |
76252-TA0-A01 |
US $4.34 |
||
|
13
|
13
76253-TC0-Q01 Mirror compL. (R1400) |
76253-TC0-Q01 |
US $30.34 |
||
|
14
|
14
76256-TA0-U11 Housing setL. |
76256-TA0-U11 |
US $33.66 |
||
|
15
|
15
76258-TA0-U11 Mirror assyL. (AUTO TURN) (R1400) |
76258-TA0-U11 |
US $371.20 |
||
|
16
|
16
76258-TC5-D01
Turn set
|
76258-TC5-D01 |
— | ||
|
17
|
17
76400-SDA-A03 Mirror assyRR. VIEW (DAY/NIGHT) |
76400-SDA-A03 |
US $91.52 |
||
|
18
|
18
90109-SDF-003 ScrewTAPPING, 4X14 |
90109-SDF-003 |
US $1.05 |
||
|
19
|
19
90109-SFA-003 Screw-washer5X12 |
90109-SFA-003 |
US $1.47 |
||
|
20
|
20
90109-SHJ-003 ScrewTAPPING, 4X16(TRUSS) |
90109-SHJ-003 |
US $1.26 |
||
|
21
|
21
90144-S04-006 ScrewTAPPING PAN, 3X14 |
90144-S04-006 |
US $1.33 |
||
|
22
|
22
91560-SLJ-J01 ClipDOOR LINING (LIGHT GRAY) |
91560-SLJ-J01 |
from US $2 |
||
|
23
|
23
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
