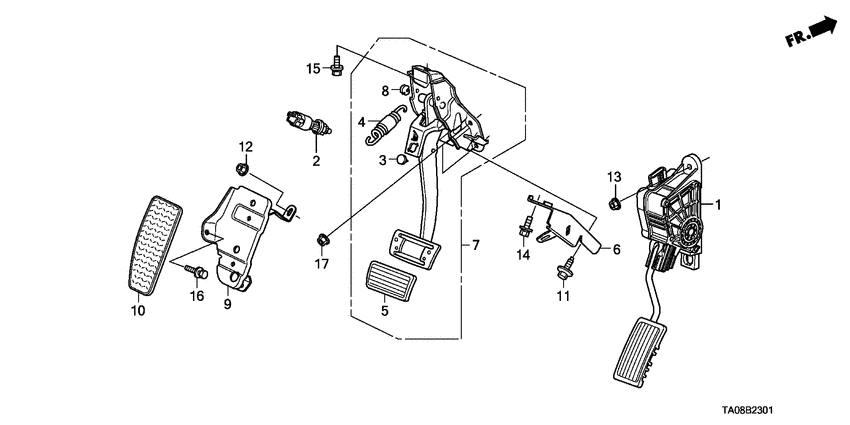

Pedal (RH) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-TA0-003 Pedal assyACCELERATOR |
17800-TA0-003 |
US $179.20 |
||
|
2
|
2
36750-SMA-003
Switch assy
|
36750-SMA-003 |
— | ||
|
2
|
2
36750-SDA-A02
Switch assy
|
36750-SDA-A02 |
— | ||
|
3
|
3
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
4
|
4
46530-TA0-A81
Spring assy
|
46530-TA0-A81 |
— | ||
|
5
|
5
46545-S84-A81 CoverPEDAL |
46545-S84-A81 |
from US $5.21 |
||
|
6
|
6
46590-TA0-000
Stay
|
46590-TA0-000 |
— | ||
|
7
|
7
46600-TA0-981 Pedal assyBRAKE |
46600-TA0-981 |
US $66.56 |
||
|
8
|
8
46982-TA0-A81 BushRETURN SPRING |
46982-TA0-A81 |
US $2.24 |
||
|
9
|
9
46991-TA0-J01 BracketFOOTREST |
46991-TA0-J01 |
US $15.36 |
||
|
10
|
10
46992-TA0-J01 PlateFOOTREST |
46992-TA0-J01 |
US $5.46 |
||
|
11
|
11
90104-SFE-003 BoltFLANGE, 8X23 |
90104-SFE-003 |
US $1.61 |
||
|
12
|
12
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
13
|
13
90361-S3C-003 NutPAINT CUTTING, 8MM |
90361-S3C-003 |
US $1.19 |
||
|
14
|
14
93404-080-200-8 Bolt-washer8X20 |
93404-080-200-8 |
from US $0.67 |
||
|
15
|
15
93404-080-250-8 Bolt-washer8X25 |
93404-080-250-8 |
from US $0.74 |
||
|
16
|
16
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
