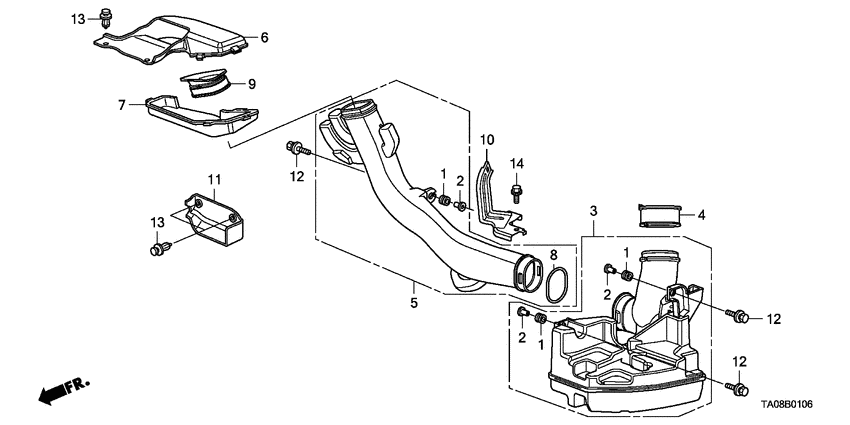

Resonator chamber (2.4L) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17212-PLC-000 RubberAIR CLEANER MOUNTING |
17212-PLC-000 |
US $2.31 |
||
|
2
|
2
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
3
|
3
17230-R40-A00 Chamber assy RESONATOR |
17230-R40-A00 |
US $89.60 |
||
|
4
|
4
17251-R40-A00 TubeAIR CLEANER CONNECTING |
17251-R40-A00 |
from US $10.21 |
||
|
5
|
5
17253-R40-A00
Tube assy. b
|
17253-R40-A00 |
— | ||
|
6
|
6
17256-R40-A00 Cover aWATER SEPARATOR |
17256-R40-A00 |
US $13.44 |
||
|
7
|
7
17257-R40-A00 Cover bWATER SEPARATOR |
17257-R40-A00 |
from US $10.08 |
||
|
8
|
8
17258-RWK-000 RingSEAL |
17258-RWK-000 |
US $3.08 |
||
|
9
|
9
17258-R40-A00 RubberAIR INTAKE |
17258-R40-A00 |
US $7.56 |
||
|
10
|
10
17262-R40-A00
Stay comp
|
17262-R40-A00 |
— | ||
|
11
|
11
17263-R40-A00 PlateAIR GUIDE |
17263-R40-A00 |
US $4.48 |
||
|
12
|
12
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $2.52 |
||
|
13
|
13
91505-S9A-003 Clip ABUMPER |
91505-S9A-003 |
from US $2.50 |
||
|
14
|
14
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
