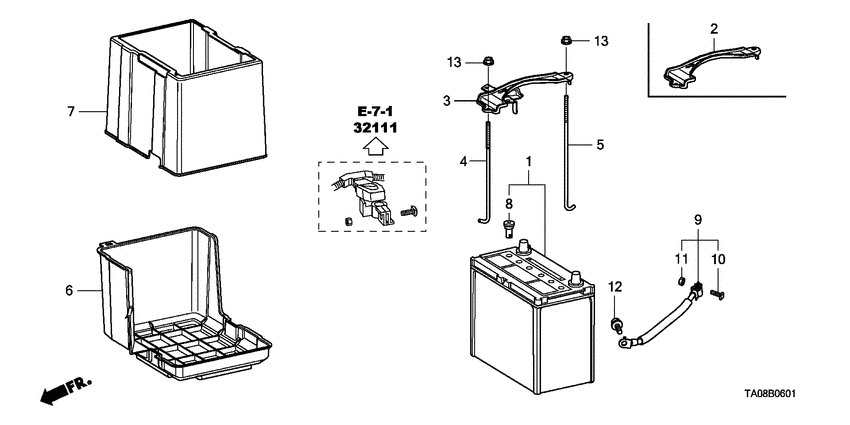

Battery (2.4L) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI-L
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-S3N-G51
Battery assy
|
31500-S3N-G51 |
— | ||
|
1
|
1
31500-S3N-G52
Battery assy
|
31500-S3N-G52 |
— | ||
|
3
|
3
31512-TA0-A00 PlateBATTERY SETTING |
31512-TA0-A00 |
US $7.98 |
||
|
4
|
4
31513-SDB-000 BoltBATTERY SETTING(203MM) |
31513-SDB-000 |
US $2.73 |
||
|
5
|
5
31513-TA0-A00 BoltBATTERY SETTING (220MM) |
31513-TA0-A00 |
US $2.73 |
||
|
6
|
6
31521-TA5-A00
Box
|
31521-TA5-A00 |
— | ||
|
7
|
7
31531-TA0-A00 CoverBATTERY (70D) |
31531-TA0-A00 |
US $13.58 |
||
|
8
|
8
31542-SA5-666 PlugVENT (MF) (FURUKAWA) |
31542-SA5-666 |
from US $2.59 |
||
|
8
|
8
31542-SA5-665 PlugVENT (MF) (PANASONIC) |
31542-SA5-665 |
from US $2.74 |
||
|
9
|
9
32600-TA0-A00 Cable assyBATTERY EARTH |
32600-TA0-A00 |
US $22.78 |
||
|
10
|
10
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
11
|
11
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
12
|
12
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
13
|
13
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
