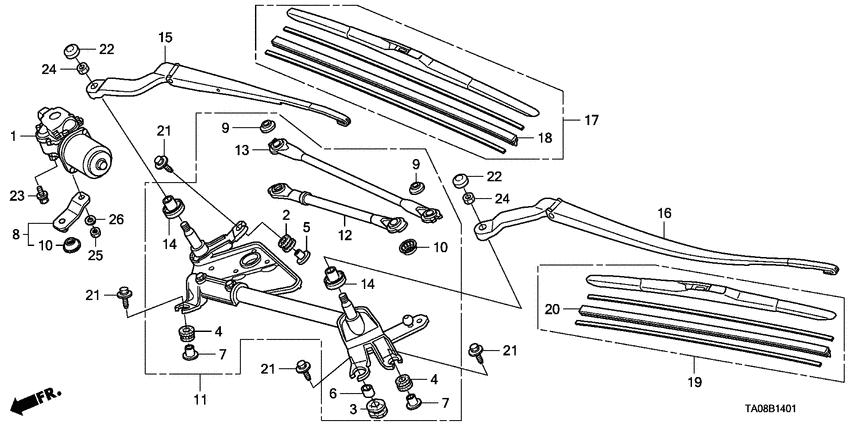

Front windshield wiper (RH) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI-L
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76505-TA0-J01
Motor comp
|
76505-TA0-J01 |
— | ||
|
2
|
2
76516-SDA-A01 RubberMOUNTING |
76516-SDA-A01 |
US $2.73 |
||
|
3
|
3
76516-SJK-003 RubberMOUNTING |
76516-SJK-003 |
US $2.31 |
||
|
4
|
4
76516-SM4-003 RubberMOUNTING |
76516-SM4-003 |
US $2.73 |
||
|
5
|
5
76517-SE0-003 CollarBRACKETLESS |
76517-SE0-003 |
US $3.03 |
||
|
6
|
6
76517-SJK-003 Collar |
76517-SJK-003 |
US $1.82 |
||
|
7
|
7
76517-SM4-003 Collar |
76517-SM4-003 |
US $1.82 |
||
|
8
|
8
76520-TA0-A01 Link assy. a |
76520-TA0-A01 |
US $10.50 |
||
|
9
|
9
76524-SD4-003 Dust seal |
76524-SD4-003 |
US $2.93 |
||
|
10
|
10
76524-SL0-A01 Dust seal |
76524-SL0-A01 |
US $3.29 |
||
|
11
|
11
76530-TA0-J01 Link compFR. WIPER |
76530-TA0-J01 |
US $171.52 |
||
|
12
|
12
76540-TA0-J01 Rod unit a |
76540-TA0-J01 |
US $12.60 |
||
|
13
|
13
76550-TA0-A01 Rod unit b |
76550-TA0-A01 |
US $14.21 |
||
|
14
|
14
76561-SEA-003 CapPIVOT |
76561-SEA-003 |
US $4.62 |
||
|
15
|
15
76600-TA0-J01 ArmWINDSHIELD WIPER (DRIVER SIDE) |
76600-TA0-J01 |
US $56.70 |
||
|
16
|
16
76610-TA0-J01 ArmWINDSHIELD WIPER (PASSENGER SIDE) |
76610-TA0-J01 |
US $67.84 |
||
|
17
|
17
76620-TA0-J01 BladeWINDSHIELD WIPER (650MM) |
76620-TA0-J01 |
US $39.68 |
||
|
18
|
18
76622-STK-A01
Rubber
|
76622-STK-A01 |
— | ||
| replacement | |||||
|
18
|
18
76622-STK-A02 BLADE RUBBER |
76622-STK-A02 |
US $14.65 |
||
|
19
|
19
76630-TA0-J01 BladeWINDSHIELD WIPER (475MM) |
76630-TA0-J01 |
US $33.28 |
||
|
20
|
20
76632-TA0-A01 RubberBLADE(475MM) |
76632-TA0-A01 |
US $9.80 |
||
|
21
|
21
90126-SR3-000 Bolt-washer6X32 |
90126-SR3-000 |
US $1.26 |
||
|
22
|
22
91611-SDA-A00 CapFR. WIPER ARM (12MM) |
91611-SDA-A00 |
from US $1.89 |
||
|
23
|
23
93402-060-140-8 Bolt-washer6X14 |
93402-060-140-8 |
from US $0.52 |
||
|
24
|
24
94001-120-800-S NutHEX., 12MM |
94001-120-800-S |
from US $0.59 |
||
|
25
|
25
94031-10080 NutHEX., 10MM |
94031-10080 |
US $0.52 |
||
|
26
|
26
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
