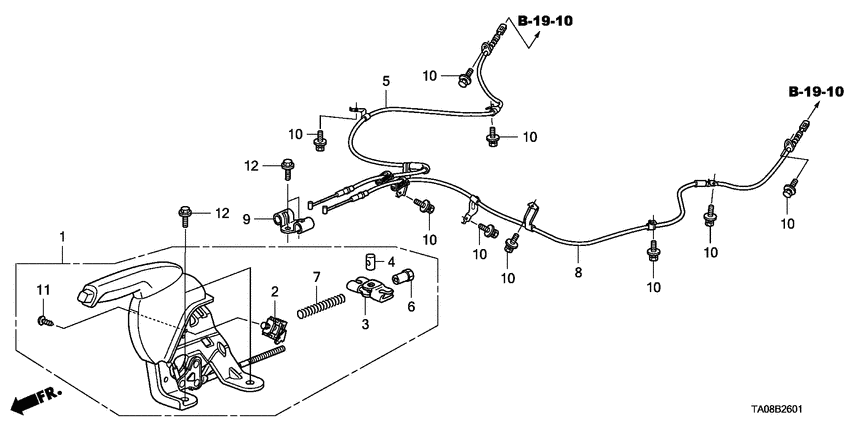

Parking brake (RH) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- VTI-L
- abs
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47105-TA0-J01ZA Lever assy.PARKING BRAKE *NH167L* |
47105-TA0-J01ZA |
US $153.60 |
||
|
2
|
2
47342-STX-A01
Switch
|
47342-STX-A01 |
— | ||
|
3
|
3
47360-TA0-J01 Equalizer |
47360-TA0-J01 |
US $6.30 |
||
|
4
|
4
47365-538-000 PinEQUALIZER |
47365-538-000 |
from US $3.08 |
||
|
5
|
5
47510-TA0-A01
Wire
|
47510-TA0-A01 |
— | ||
|
6
|
6
47522-594-000 NutPARKING BRAKE ADJUSTING |
47522-594-000 |
US $3.34 |
||
|
7
|
7
47537-SDG-003
Spring
|
47537-SDG-003 |
— | ||
|
8
|
8
47560-TA0-A01
Wire
|
47560-TA0-A01 |
— | ||
|
9
|
9
47572-ST0-000 BaseWIRE GUIDE |
47572-ST0-000 |
from US $3.22 |
||
|
10
|
10
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
11
|
11
93903-34210 ScrewTAPPING, 4X10 |
93903-34210 |
from US $0.37 |
||
|
12
|
12
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
