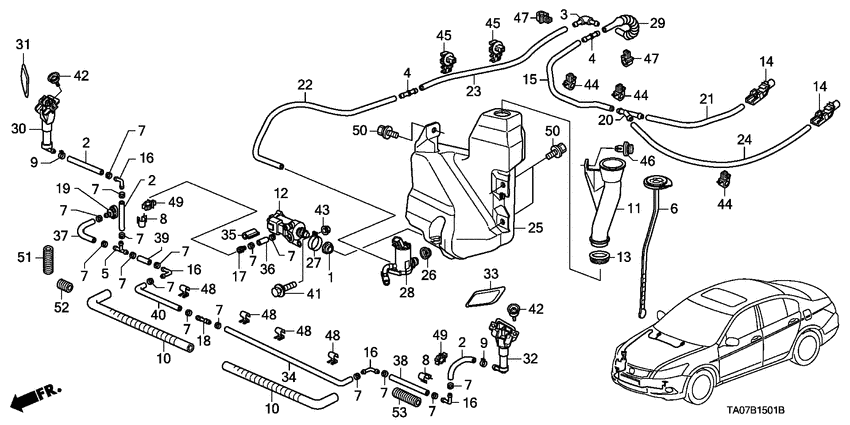

Windshield washer (HEADLIGHT WASHER) Diagram Honda ACCORD
- Year
- 2011
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 LX
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38514-692-731 Bush |
38514-692-731 |
from US $3.26 |
||
|
2
|
2
38524-671-631 Hose dWASHER |
38524-671-631 |
US $7.42 |
||
|
3
|
3
38562-SA0-003 Joint lWASHER TUBE(MITSUBA) |
38562-SA0-003 |
US $3.83 |
||
|
4
|
4
38562-663-920 Joint bWASHER TUBE (MITSUBA) |
38562-663-920 |
from US $3.26 |
||
|
5
|
5
38581-671-631 JointTUBE |
38581-671-631 |
US $7.28 |
||
|
6
|
6
76802-SEF-S01 Cap unitMOUTH |
76802-SEF-S01 |
from US $4.40 |
||
|
7
|
7
76803-SH2-S10 ClipWASHER HOSE |
76803-SH2-S10 |
US $2.38 |
||
|
9
|
9
76803-TA1-M01 ClipWASHER HOSE |
76803-TA1-M01 |
US $1.82 |
||
|
10
|
10
76804-TA1-M01 Protector |
76804-TA1-M01 |
US $6.44 |
||
|
11
|
11
76805-TA0-C01 Hose |
76805-TA0-C01 |
US $13.82 |
||
|
12
|
12
76806-SNB-S01 PumpWASHER |
76806-SNB-S01 |
US $157.08 |
||
|
13
|
13
76809-SE0-003 GrommetWASHER TANK |
76809-SE0-003 |
US $2.65 |
||
|
14
|
14
76810-TA0-A01 Nozzle assy.WINDSHIELD |
76810-TA0-A01 |
from US $10.78 |
||
|
15
|
15
76827-TA0-A01
Tube
|
76827-TA0-A01 |
— | ||
|
16
|
16
76828-SH3-S03 Joint l |
76828-SH3-S03 |
US $2.45 |
||
|
17
|
17
76828-SJD-S41 Joint |
76828-SJD-S41 |
US $4.20 |
||
|
18
|
18
76828-S9A-S01 Joint i |
76828-S9A-S01 |
US $4.62 |
||
|
19
|
19
76829-SJD-S01 Joint |
76829-SJD-S01 |
US $4.20 |
||
|
20
|
20
76830-SL0-003 Joint yTUBE (MITSUBA) |
76830-SL0-003 |
US $5.54 |
||
|
21
|
21
76832-SNA-003
Tube
|
76832-SNA-003 |
— | ||
|
22
|
22
76832-TA0-U01
Tube
|
76832-TA0-U01 |
— | ||
|
23
|
23
76834-TA0-A01
Tube
|
76834-TA0-A01 |
— | ||
|
24
|
24
76837-TA0-A01
Tube
|
76837-TA0-A01 |
— | ||
|
25
|
25
76841-TA1-M01
Tank
|
76841-TA1-M01 |
— | ||
|
26
|
26
76842-S2K-J11 BushWASHER TANK |
76842-S2K-J11 |
from US $2.38 |
||
|
27
|
27
76845-SEA-S01 BracketWASHER MOTOR |
76845-SEA-S01 |
US $5.32 |
||
|
28
|
28
76846-TA0-A02 Pump setWASHER(FR.) |
76846-TA0-A02 |
from US $35.58 |
||
|
29
|
29
76851-TA0-A01
Tube
|
76851-TA0-A01 |
— | ||
|
30
|
30
76880-TA1-M02 Nozzle assy.R. HEADLIGHT WASHER |
76880-TA1-M02 |
US $185.60 |
||
|
31
|
31
76881-TA1-M02ZP CaseR. HEADLIGHT WASHER NOZZLE *R530P* |
76881-TA1-M02ZP |
US $54.91 |
||
|
31
|
31
76881-TA1-M02ZC CaseR. HEADLIGHT WASHER NOZZLE *NH624P* |
76881-TA1-M02ZC |
US $54.91 |
||
|
31
|
31
76881-TA1-M02ZT CaseR. HEADLIGHT WASHER NOZZLE *YR587M* |
76881-TA1-M02ZT |
US $54.91 |
||
|
31
|
31
76881-TA1-M02ZD CaseR. HEADLIGHT WASHER NOZZLE *NH700M* |
76881-TA1-M02ZD |
US $54.91 |
||
|
31
|
31
76881-TA1-M02ZE CaseR. HEADLIGHT WASHER NOZZLE *NH737M* |
76881-TA1-M02ZE |
US $54.91 |
||
|
31
|
31
76881-TA1-M02ZN CaseR. HEADLIGHT WASHER NOZZLE *NH731P* |
76881-TA1-M02ZN |
US $54.91 |
||
|
31
|
31
76881-TA1-M02ZA CaseR. HEADLIGHT WASHER NOZZLE *B536P* |
76881-TA1-M02ZA |
US $54.91 |
||
|
32
|
32
76885-TA1-M02 Nozzle assy.L. HEADLIGHT WASHER |
76885-TA1-M02 |
US $185.60 |
||
|
33
|
33
76886-TA1-M02ZT CaseL. HEADLIGHT WASHER NOZZLE *YR587M* |
76886-TA1-M02ZT |
US $54.91 |
||
|
33
|
33
76886-TA1-M02ZC CaseL. HEADLIGHT WASHER NOZZLE *NH624P* |
76886-TA1-M02ZC |
US $54.91 |
||
|
33
|
33
76886-TA1-M02ZD CaseL. HEADLIGHT WASHER NOZZLE *NH700M* |
76886-TA1-M02ZD |
US $54.91 |
||
|
33
|
33
76886-TA1-M02ZE CaseL. HEADLIGHT WASHER NOZZLE *NH737M* |
76886-TA1-M02ZE |
US $54.91 |
||
|
33
|
33
76886-TA1-M02ZN CaseL. HEADLIGHT WASHER NOZZLE *NH731P* |
76886-TA1-M02ZN |
US $54.91 |
||
|
33
|
33
76886-TA1-M02ZP CaseL. HEADLIGHT WASHER NOZZLE *R530P* |
76886-TA1-M02ZP |
US $54.91 |
||
|
33
|
33
76886-TA1-M02ZA CaseL. HEADLIGHT WASHER NOZZLE *B536P* |
76886-TA1-M02ZA |
US $54.91 |
||
|
34
|
34
76891-TA1-S01 Hose |
76891-TA1-S01 |
US $10.50 |
||
|
35
|
35
76893-SMG-S01 Cushion |
76893-SMG-S01 |
US $3.43 |
||
|
36
|
36
76893-SR3-S03 Hose c |
76893-SR3-S03 |
from US $3.57 |
||
|
37
|
37
76893-SZ3-G01 Hose240MM |
76893-SZ3-G01 |
US $6.58 |
||
|
38
|
38
76894-S5A-S11 Hose |
76894-S5A-S11 |
US $11.20 |
||
|
39
|
39
76895-SM5-G03 Hose e |
76895-SM5-G03 |
US $7.98 |
||
|
40
|
40
76895-SR3-S03 Hose |
76895-SR3-S03 |
US $7.84 |
||
|
41
|
41
90118-SEA-S01 Bolt-washer6X20 |
90118-SEA-S01 |
US $1.33 |
||
|
42
|
42
90132-TA0-000 ScrewPAN, 5X12 |
90132-TA0-000 |
US $2.73 |
||
|
43
|
43
90316-SM5-G03 NutHEX., 6MM |
90316-SM5-G03 |
US $1.12 |
||
|
44
|
44
90652-S2A-003 ClipTUBE, 7MM |
90652-S2A-003 |
US $2.19 |
||
|
45
|
45
91511-TA0-A01 ClipWASHER TUBE & OPEN WIRE |
91511-TA0-A01 |
US $1.75 |
||
|
46
|
46
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $2.44 |
||
|
47
|
47
91523-SM4-003 ClipWASHER TUBE |
91523-SM4-003 |
US $1.78 |
||
|
48
|
48
91561-SEF-003 ClipHEADLIGHT WASHER HOSE |
91561-SEF-003 |
US $4.62 |
||
|
50
|
50
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
51
|
51
76896-SWA-N01 Protector |
76896-SWA-N01 |
US $4.76 |
||
|
52
|
52
76896-TA1-M01 Protector |
76896-TA1-M01 |
US $7.28 |
||
|
53
|
53
76896-TA1-M11 Protector |
76896-TA1-M11 |
US $10.92 |
