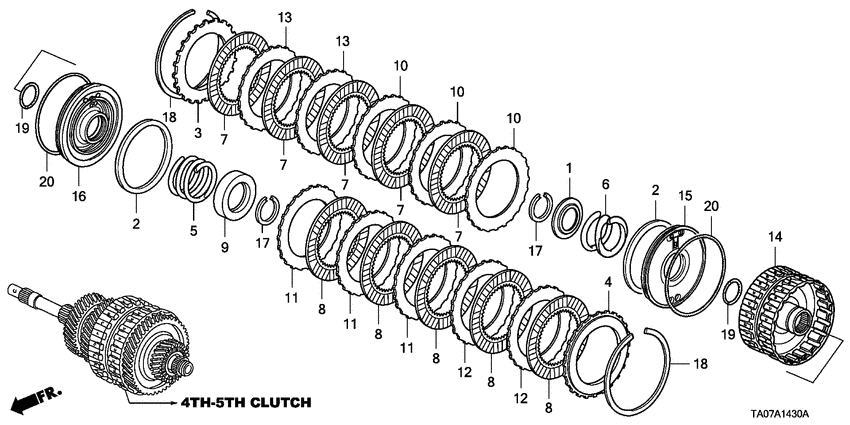

Clutch (4TH-5TH; V6) Diagram Honda ACCORD
- Year
- 2011
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 EX
- area code
- KY
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
22579-RJB-003 PlateCLUTCH END (9) (2.9MM) |
22579-RJB-003 |
US $15.23 |
||
|
3
|
3
22578-RJB-003 PlateCLUTCH END (8) (2.8MM) |
22578-RJB-003 |
US $15.23 |
||
|
3
|
3
22577-RJB-003 PlateCLUTCH END (7) (2.7MM) |
22577-RJB-003 |
US $15.23 |
||
|
3
|
3
22576-RJB-003 PlateCLUTCH END (6) (2.6MM) |
22576-RJB-003 |
US $15.23 |
||
|
3
|
3
22575-RJB-003 PlateCLUTCH END (5) (2.5MM) |
22575-RJB-003 |
US $15.23 |
||
|
3
|
3
22574-RJB-003 PlateCLUTCH END (4) (2.4MM) |
22574-RJB-003 |
US $15.23 |
||
|
3
|
3
22573-RJB-003 PlateCLUTCH END (3) (2.3MM) |
22573-RJB-003 |
US $15.23 |
||
|
3
|
3
22572-RJB-003 PlateCLUTCH END (2) (2.2MM) |
22572-RJB-003 |
US $15.23 |
||
|
3
|
3
22571-RJB-003 PlateCLUTCH END (1) (2.1MM) |
22571-RJB-003 |
US $15.23 |
||
|
7
|
7
22645-RK3-003 DiskCLUTCH |
22645-RK3-003 |
US $18.30 |
||
|
8
|
8
22645-RK3-003 DiskCLUTCH |
22645-RK3-003 |
US $18.30 |
||
|
10
|
10
22657-RJB-013 PlateCLUTCH (1.6MM) |
22657-RJB-013 |
from US $8.26 |
||
|
13
|
13
22659-PVL-003 PlateCLUTCH WAVE (1.6MM) |
22659-PVL-003 |
US $8.26 |
