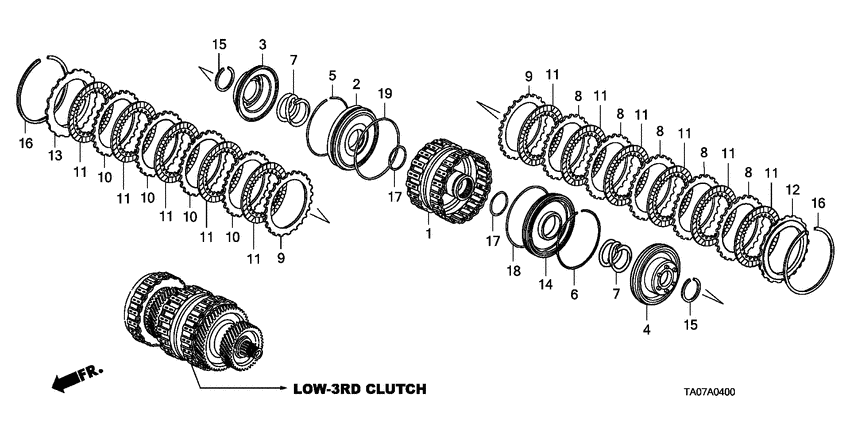

Clutch (LOW-3RD; L4) Diagram Honda ACCORD
- Year
- 2011
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 EX
- area code
- KY
- sunroof
- +
- navigation
- +
- leather seat
- +
- premium sound
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
22543-RCL-A01 PlateCLUTCH WAVE (1.6MM) |
22543-RCL-A01 |
US $7.56 |
||
|
9
|
9
22543-RCL-A11 PlateCLUTCH (1.6MM) |
22543-RCL-A11 |
US $7.56 |
||
|
10
|
10
22543-RCL-J01 PlateCLUTCH WAVE (1.6MM) |
22543-RCL-J01 |
US $7.56 |
||
|
12
|
12
22559-RCL-A01 PlateCLUTCH END (9) (2.9MM) |
22559-RCL-A01 |
US $13.82 |
||
|
12
|
12
22551-RCL-A01 PlateCLUTCH END (1) (2.1MM) |
22551-RCL-A01 |
US $13.82 |
||
|
12
|
12
22554-RCL-A01 PlateCLUTCH END (4) (2.4MM) |
22554-RCL-A01 |
US $13.82 |
||
|
12
|
12
22557-RCL-A01 PlateCLUTCH END (7) (2.7MM) |
22557-RCL-A01 |
US $13.82 |
||
|
12
|
12
22552-RCL-A01 PlateCLUTCH END (2) (2.2MM) |
22552-RCL-A01 |
US $13.82 |
||
|
12
|
12
22555-RCL-A01 PlateCLUTCH END (5) (2.5MM) |
22555-RCL-A01 |
US $13.82 |
||
|
12
|
12
22558-RCL-A01 PlateCLUTCH END (8) (2.8MM) |
22558-RCL-A01 |
US $13.82 |
||
|
12
|
12
22553-RCL-A01 PlateCLUTCH END (3) (2.3MM) |
22553-RCL-A01 |
US $13.82 |
||
|
12
|
12
22556-RCL-A01 PlateCLUTCH END (6) (2.6MM) |
22556-RCL-A01 |
US $13.82 |
||
|
13
|
13
22578-R91-003 PlateCLUTCH END (8) (3.3MM) |
22578-R91-003 |
US $13.82 |
||
|
13
|
13
22573-R91-003 PlateCLUTCH END (3) (2.8MM) |
22573-R91-003 |
US $13.82 |
||
|
13
|
13
22576-R91-003 PlateCLUTCH END (6) (3.1MM) |
22576-R91-003 |
US $13.82 |
||
|
13
|
13
22575-R91-003 PlateCLUTCH END (5) (3.0MM) |
22575-R91-003 |
US $13.82 |
||
|
13
|
13
22579-R91-003 PlateCLUTCH END (9) (3.4MM) |
22579-R91-003 |
US $13.82 |
||
|
13
|
13
22571-R91-003 PlateCLUTCH END (1) (2.6MM) |
22571-R91-003 |
US $13.82 |
||
|
13
|
13
22574-R91-003 PlateCLUTCH END (4) (2.9MM) |
22574-R91-003 |
US $13.82 |
||
|
13
|
13
22577-R91-003 PlateCLUTCH END (7) (3.2MM) |
22577-R91-003 |
US $13.82 |
||
|
13
|
13
22572-R91-003 PlateCLUTCH END (2) (2.7MM) |
22572-R91-003 |
US $13.82 |
