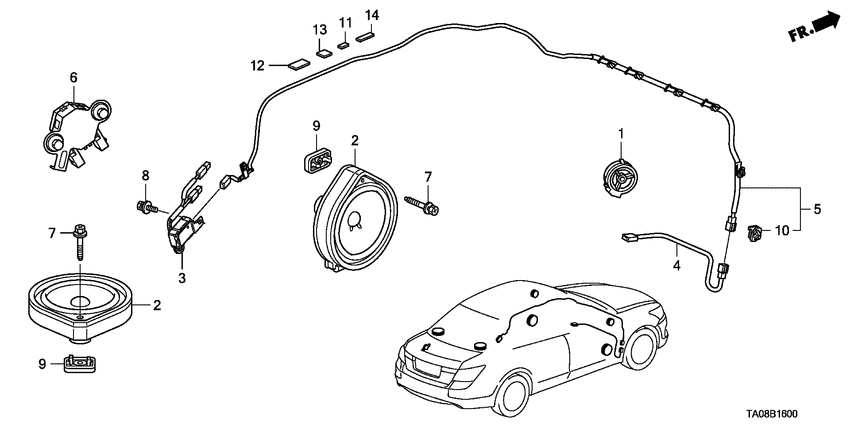

Radio antenna/speaker (LH) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4
- abs
- +
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39120-SJC-A01
Speaker assy
|
39120-SJC-A01 |
— | ||
|
2
|
2
39120-TA0-A01
Speaker assy
|
39120-TA0-A01 |
— | ||
|
3
|
3
39155-TA0-A01 Module unitANTENNA |
39155-TA0-A01 |
US $55.04 |
||
|
4
|
4
39156-TA0-A01
Sub feeder
|
39156-TA0-A01 |
— | ||
|
5
|
5
39160-TA0-A21 Feeder assy.RADIO |
39160-TA0-A21 |
US $55.55 |
||
|
7
|
7
90109-SLJ-003 Screw5X40 |
90109-SLJ-003 |
US $1.61 |
||
|
8
|
8
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
9
|
9
90309-SLJ-003 Nut assy.SPEAKER |
90309-SLJ-003 |
US $3.78 |
||
|
10
|
10
91534-SWA-003 ClipCOUPLER(DARK GRAY) |
91534-SWA-003 |
from US $4.14 |
||
|
11
|
11
91902-SJA-000 PlasterWIRE HARNESS (25X50) |
91902-SJA-000 |
US $1.05 |
||
|
12
|
12
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
13
|
13
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
||
|
14
|
14
91902-TA0-000 PlasterWIRE HARNESS(25X100) |
91902-TA0-000 |
US $1.19 |
