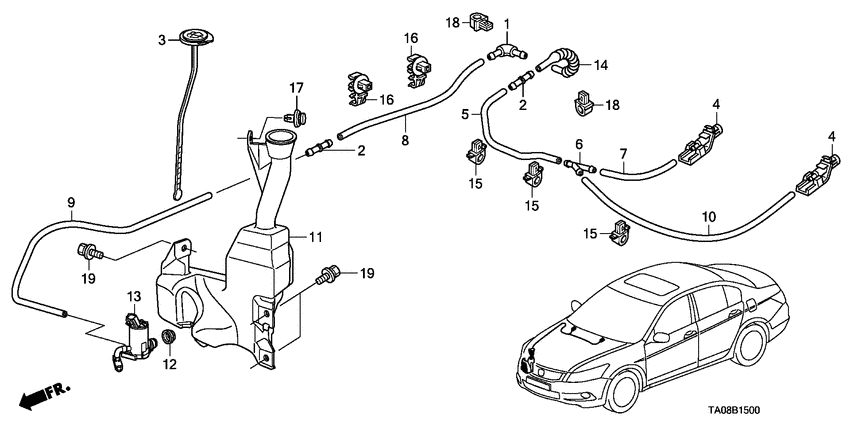

Windshield washer (KD) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4
- abs
- +
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38562-SA0-003 Joint lWASHER TUBE(MITSUBA) |
38562-SA0-003 |
US $3.83 |
||
|
2
|
2
38562-663-920 Joint bWASHER TUBE (MITSUBA) |
38562-663-920 |
from US $3.26 |
||
|
3
|
3
76802-SEF-S01 Cap unitMOUTH |
76802-SEF-S01 |
from US $4.40 |
||
|
4
|
4
76810-TA0-A01 Nozzle assy.WINDSHIELD |
76810-TA0-A01 |
from US $10.78 |
||
|
5
|
5
76827-TA0-A01
Tube
|
76827-TA0-A01 |
— | ||
|
6
|
6
76830-SL0-003 Joint yTUBE (MITSUBA) |
76830-SL0-003 |
US $5.54 |
||
|
7
|
7
76832-SNA-003
Tube
|
76832-SNA-003 |
— | ||
|
8
|
8
76834-TA0-A01
Tube
|
76834-TA0-A01 |
— | ||
|
9
|
9
76837-SJK-003
Tube
|
76837-SJK-003 |
— | ||
|
10
|
10
76837-TA0-A01
Tube
|
76837-TA0-A01 |
— | ||
|
11
|
11
76841-TA0-A01 TankWASHER (2.5L FR.) |
76841-TA0-A01 |
from US $59.40 |
||
|
12
|
12
76842-S2K-J11 BushWASHER TANK |
76842-S2K-J11 |
from US $2.38 |
||
|
13
|
13
76846-TA0-A02 Pump setWASHER(FR.) AC200913 - |
76846-TA0-A02 |
from US $35.58 |
||
|
13
|
13
76846-TA0-A01
Pump set
00000000 - AC200912 |
76846-TA0-A01 |
— | ||
|
14
|
14
76851-TA0-A01
Tube
|
76851-TA0-A01 |
— | ||
|
15
|
15
90652-S2A-003 ClipTUBE, 7MM |
90652-S2A-003 |
US $2.19 |
||
|
16
|
16
91511-TA0-A01 ClipWASHER TUBE & OPEN WIRE |
91511-TA0-A01 |
US $1.75 |
||
|
17
|
17
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $2.44 |
||
|
18
|
18
91523-SM4-003 ClipWASHER TUBE |
91523-SM4-003 |
US $1.78 |
||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
