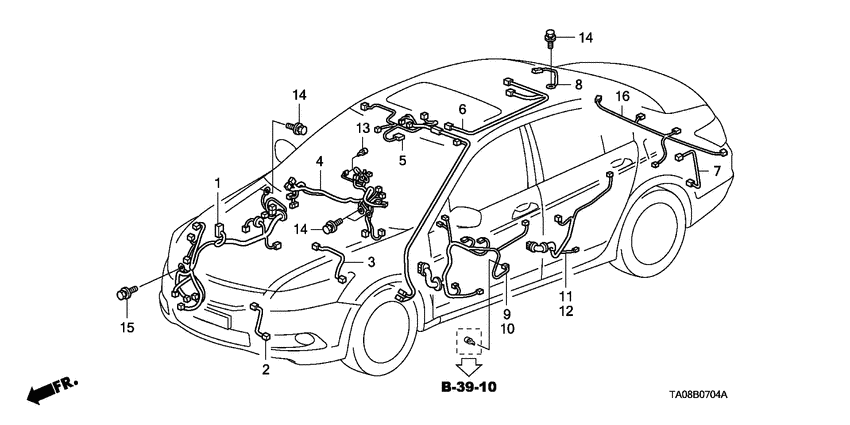

Wire harness (3; LH) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4
- abs
- +
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-TA0-H00 HarnessR. CABIN WIRE |
32100-TA0-H00 |
US $222.72 |
||
|
4
|
4
32118-TA0-Y01 HarnessAUDIO SUB WIRE (INCLUDE SUB FEEDER) |
32118-TA0-Y01 |
US $184.32 |
||
|
5
|
5
32155-TA0-H10
Cord
|
32155-TA0-H10 |
— | ||
|
6
|
6
32156-TA0-A00 HarnessSUNROOF WIRE (SUB) |
32156-TA0-A00 |
US $53.12 |
||
|
8
|
8
32202-TA0-A00 CordDEFOGGER SUB |
32202-TA0-A00 |
US $5.04 |
||
|
9
|
9
32751-TA0-600 HarnessDOOR WIRE (DRIVER SIDE) |
32751-TA0-600 |
US $113.28 |
||
|
10
|
10
32752-TA0-H00 HarnessDOOR WIRE (PASSENGER SIDE) |
32752-TA0-H00 |
US $86.40 |
||
|
11
|
11
32753-TA0-A10 HarnessR. RR. DOOR WIRE |
32753-TA0-A10 |
US $36.22 |
||
|
12
|
12
32754-TA0-A10 HarnessL. RR. DOOR WIRE |
32754-TA0-A10 |
US $36.22 |
||
|
13
|
13
33301-S70-003 Bulb12V 3.8W 2CP |
33301-S70-003 |
US $2.04 |
||
|
14
|
14
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
15
|
15
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
