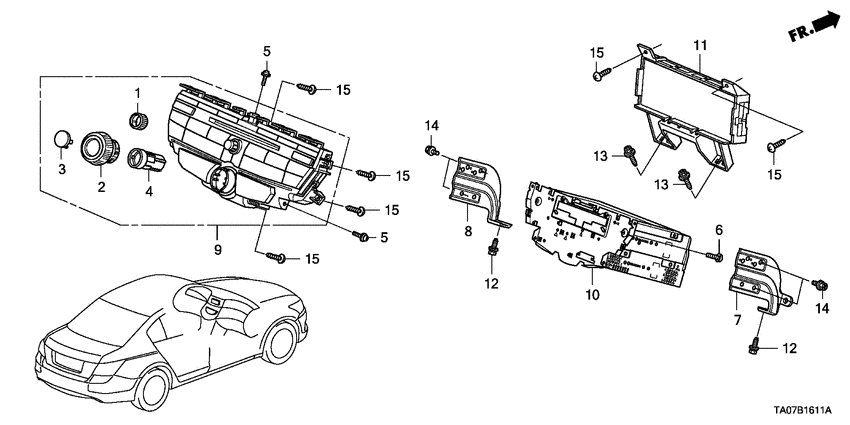

Audio unit (6CD) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 EX
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39103-TA0-A31 KnobVOLUME |
39103-TA0-A31 |
US $7.56 |
||
|
2
|
2
39104-TA0-A31 KnobTUNE/SELECT |
39104-TA0-A31 |
US $9.32 |
||
|
3
|
3
39105-TA0-A31 KnobSEL PUSH |
39105-TA0-A31 |
US $7.56 |
||
|
4
|
4
39106-TA0-A31 Lighting conductor |
39106-TA0-A31 |
US $7.56 |
||
|
5
|
5
39107-TA0-A31 ScrewM2.6X5 |
39107-TA0-A31 |
US $0.56 |
||
|
6
|
6
39108-TA0-A31 ScrewM2.6X10 |
39108-TA0-A31 |
US $0.56 |
||
|
7
|
7
39111-TA0-A00 BracketR. RADIO |
39111-TA0-A00 |
US $2.45 |
||
|
8
|
8
39161-TA0-A00 BracketL. RADIO |
39161-TA0-A00 |
US $2.45 |
||
|
9
|
9
39170-TA0-Y31ZB Panel compFR. *YR334L* |
39170-TA0-Y31ZB |
US $675.84 |
||
|
9
|
9
39170-TA0-Y31ZA Panel compFR. *NH693L* |
39170-TA0-Y31ZA |
US $675.84 |
||
|
10
|
10
39171-TA0-Y31
Tuner assy
|
39171-TA0-Y31 |
— | ||
|
11
|
11
39710-TA0-A22 Display assyCENTER (STANLEY) |
39710-TA0-A22 |
US $532.48 |
||
|
12
|
12
90130-SCC-300 Bolt-washer5X13 |
90130-SCC-300 |
US $1.33 |
||
|
13
|
13
90140-SDA-A00 Bolt-washer5X19 |
90140-SDA-A00 |
from US $1.39 |
||
|
14
|
14
91551-SE0-003 BoltFLANGE, 5X7 |
91551-SE0-003 |
US $0.84 |
||
|
15
|
15
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
