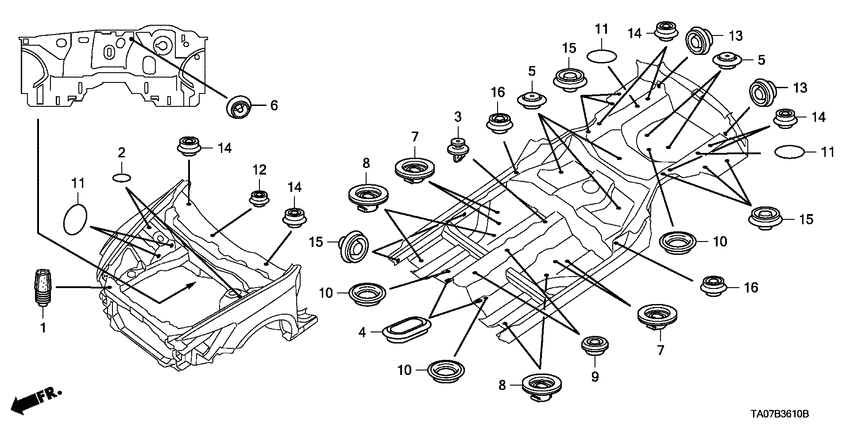

Grommet (FRONT) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 EX
- area code
- KY
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74827-SK8-003 StopperTRUNK LID |
74827-SK8-003 |
US $3.89 |
||
|
2
|
2
75826-634-300 SealINSIDE PANEL, 15MM |
75826-634-300 |
from US $1.92 |
||
|
3
|
3
77964-TA0-A01 ClipPROTECTOR(NATURAL) |
77964-TA0-A01 |
US $1.33 |
||
|
4
|
4
90615-S5A-003 PlugHOLE, 27X56 |
90615-S5A-003 |
US $2.73 |
||
|
5
|
5
90826-SNA-003 Grommet25MM (BURRING) |
90826-SNA-003 |
US $2.73 |
||
|
6
|
6
90860-SA5-003 PlugHOLE, 16MM |
90860-SA5-003 |
US $2.77 |
||
|
7
|
7
91611-TA0-003 PlugFLOOR HOLE, 25MM |
91611-TA0-003 |
US $4.40 |
||
|
8
|
8
91612-TA0-003 PlugFLOOR HOLE, 25MM |
91612-TA0-003 |
from US $4.40 |
||
|
9
|
9
91613-SR3-003 GrommetSUB FRAME, 15MM |
91613-SR3-003 |
US $1.26 |
||
|
10
|
10
91615-SH3-000 CapFLOOR HOLE, 49MM |
91615-SH3-000 |
US $2.74 |
||
|
11
|
11
91619-SE0-000 SealDOOR HOLE, 30MM(BLACK) |
91619-SE0-000 |
from US $1.33 |
||
|
12
|
12
95550-07000 PlugBLIND, 7MM |
95550-07000 |
from US $1.04 |
||
|
13
|
13
95550-35000 PlugBLIND, 35MM |
95550-35000 |
US $2.07 |
||
|
14
|
14
95551-11000 PlugBLIND, 11MM |
95551-11000 |
US $1.04 |
||
|
15
|
15
95551-15000 PlugBLIND, 15MM |
95551-15000 |
US $1.55 |
||
|
16
|
16
95551-25000 PlugBLIND, 25MM |
95551-25000 |
US $2.07 |
