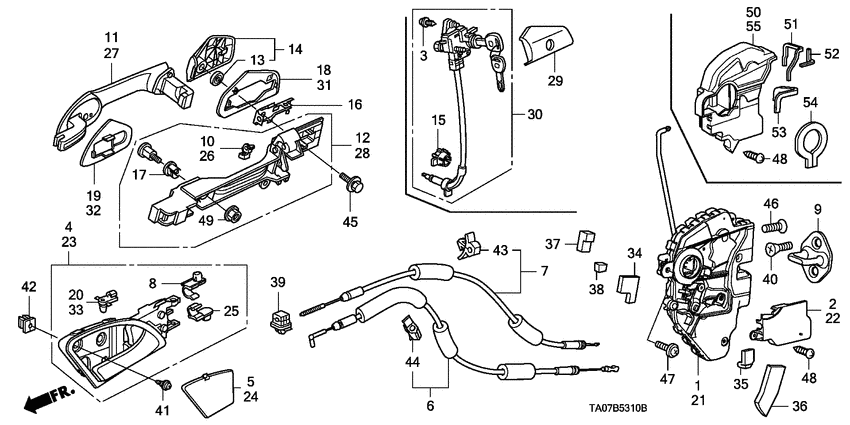

Front door locks/ outer handle Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 EX
- area code
- KY
- sunroof
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72110-TA0-A11
Latch assy
|
72110-TA0-A11 |
— | ||
|
2
|
2
72112-SJK-003 ProtectorR. DOOR LATCH 00000000 - 9C419205 |
72112-SJK-003 |
US $3.43 |
||
|
3
|
3
72118-SJK-003 ScrewTAPPING |
72118-SJK-003 |
US $1.19 |
||
|
4
|
4
72120-TA0-A02ZC Handle assyR. INSIDE *YR325L* |
72120-TA0-A02ZC |
US $24.83 |
||
|
4
|
4
72120-TA0-A02ZB Handle assyR. INSIDE *NH597L* |
72120-TA0-A02ZB |
US $24.83 |
||
|
5
|
5
72121-TA0-A01ZC CapR. INSIDE HANDLE *YR325L* |
72121-TA0-A01ZC |
US $3.22 |
||
|
5
|
5
72121-TA0-A01ZB CapR. INSIDE HANDLE *NH597L* |
72121-TA0-A01ZB |
US $3.22 |
||
|
6
|
6
72131-TA0-A01 CableFR. INSIDE HANDLE |
72131-TA0-A01 |
US $7.56 |
||
|
7
|
7
72133-TA0-A01 CableFR. DOOR LOCK |
72133-TA0-A01 |
US $9.24 |
||
|
8
|
8
72134-SHJ-003 Clip sCABLE END (NATURAL) |
72134-SHJ-003 |
US $1.61 |
||
|
8
|
8
72174-SHJ-003 Clip tCABLE END (BLACK) |
72174-SHJ-003 |
from US $1.61 |
||
|
9
|
9
72135-SDA-A01 Striker assyDOOR LOCK |
72135-SDA-A01 |
US $12.76 |
||
|
10
|
10
72141-SD4-004 BushR. JOINT |
72141-SD4-004 |
US $1.68 |
||
|
11
|
11
72141-TA0-A11 Handle comp.R. |
72141-TA0-A11 |
US $44.03 |
||
|
12
|
12
72142-TA0-A01 Base comp.R. |
72142-TA0-A01 |
US $26.62 |
||
|
13
|
13
72143-S04-003 Packing |
72143-S04-003 |
US $1.61 |
||
|
14
|
14
72143-TA0-A11 Cover comp.R. |
72143-TA0-A11 |
from US $19.71 |
||
|
15
|
15
72144-SJD-003 Retainer |
72144-SJD-003 |
US $2.45 |
||
|
16
|
16
72144-TA0-A11 Holder comp |
72144-TA0-A11 |
US $6.86 |
||
|
17
|
17
72146-TA0-A61 Collar |
72146-TA0-A61 |
US $1.61 |
||
|
18
|
18
72146-TA0-A71 Seat bR. |
72146-TA0-A71 |
from US $3.08 |
||
|
19
|
19
72146-TA0-A91 Seat aR. |
72146-TA0-A91 |
US $3.08 |
||
|
20
|
20
72149-SLA-003
Snap
|
72149-SLA-003 |
— | ||
|
21
|
21
72150-TA0-A21
Latch assy
|
72150-TA0-A21 |
— | ||
|
22
|
22
72152-SJK-003 ProtectorL. DOOR LATCH 00000000 - 9C419205 |
72152-SJK-003 |
US $3.43 |
||
|
23
|
23
72160-TA0-A02ZB Handle assyL. INSIDE *NH597L* |
72160-TA0-A02ZB |
US $24.83 |
||
|
23
|
23
72160-TA0-A02ZC Handle assyL. INSIDE *YR325L* |
72160-TA0-A02ZC |
US $24.83 |
||
|
24
|
24
72161-TA0-A01ZC CapL. INSIDE HANDLE *YR325L* |
72161-TA0-A01ZC |
US $3.22 |
||
|
24
|
24
72161-TA0-A01ZB CapL. INSIDE HANDLE *NH597L* |
72161-TA0-A01ZB |
US $3.22 |
||
|
25
|
25
72134-SHJ-003 Clip sCABLE END (NATURAL) |
72134-SHJ-003 |
US $1.61 |
||
|
25
|
25
72174-SHJ-003 Clip tCABLE END (BLACK) |
72174-SHJ-003 |
from US $1.61 |
||
|
26
|
26
72181-SD4-004 BushL. JOINT |
72181-SD4-004 |
US $1.68 |
||
|
27
|
27
72181-TA0-A11 Handle comp.L. |
72181-TA0-A11 |
US $44.03 |
||
|
28
|
28
72182-TA0-A01 Base comp.L. |
72182-TA0-A01 |
US $26.62 |
||
|
29
|
29
72183-TA0-A11 Cover comp.L. |
72183-TA0-A11 |
from US $25.34 |
||
|
30
|
30
72185-TA0-A01 CylinderL. DOOR |
72185-TA0-A01 |
US $62.70 |
||
|
31
|
31
72186-TA0-A71 Seat bL. |
72186-TA0-A71 |
US $3.08 |
||
|
32
|
32
72186-TA0-A91 Seat aL. |
72186-TA0-A91 |
US $3.08 |
||
|
33
|
33
72189-SLA-003
Snap
|
72189-SLA-003 |
— | ||
|
34
|
34
72613-TA0-A00 Seal00000000 - 9C419205 |
72613-TA0-A00 |
US $2.31 |
||
|
35
|
35
72614-TA0-A00 Seal00000000 - 9C419205 |
72614-TA0-A00 |
US $1.96 |
||
|
36
|
36
72615-TA0-A00 Seal00000000 - 9C419205 |
72615-TA0-A00 |
US $3.50 |
||
|
37
|
37
72616-TA0-A00 Seal00000000 - 9C419205 |
72616-TA0-A00 |
US $1.96 |
||
|
38
|
38
72617-TA0-A00 Seal00000000 - 9C419205 |
72617-TA0-A00 |
US $1.33 |
||
|
39
|
39
74387-S3C-003 Fastener |
74387-S3C-003 |
US $2.31 |
||
|
40
|
40
90120-SV4-000 BoltLOCK STRIKER |
90120-SV4-000 |
US $1.63 |
||
|
41
|
41
90141-SDA-000 ScrewTAPPING, 5X12 |
90141-SDA-000 |
US $1.05 |
||
|
42
|
42
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
43
|
43
91591-SJ6-013 Clip sFUEL PIPE |
91591-SJ6-013 |
US $1.47 |
||
|
44
|
44
91691-TA0-003 ClipDOOR CABLE |
91691-TA0-003 |
US $1.26 |
||
|
45
|
45
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
46
|
46
93600-060-200-A ScrewFLAT, 6X20 |
93600-060-200-A |
from US $0.44 |
||
|
47
|
47
93891-060-120-0 Screw-washer6X12 |
93891-060-120-0 |
from US $0.52 |
||
|
48
|
48
93901-22320 ScrewTAPPING, 3X12 |
93901-22320 |
from US $0.37 |
||
|
49
|
49
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
50
|
50
72112-TL2-A01 ProtectorR. DOOR LATCH 9C419206 - |
72112-TL2-A01 |
US $6.72 |
||
|
51
|
51
72117-TL2-A01 Seal9C419206 - |
72117-TL2-A01 |
US $3.08 |
||
|
52
|
52
72118-TA0-003 Seal9C419206 - |
72118-TA0-003 |
US $3.08 |
||
|
53
|
53
72118-TL0-003 Seal9C419206 - |
72118-TL0-003 |
US $3.08 |
||
|
54
|
54
72119-TL2-A01 Seal9C419206 - |
72119-TL2-A01 |
US $3.08 |
||
|
55
|
55
72152-TL2-A01 ProtectorL. DOOR LATCH 9C419206 - |
72152-TL2-A01 |
US $6.16 |
