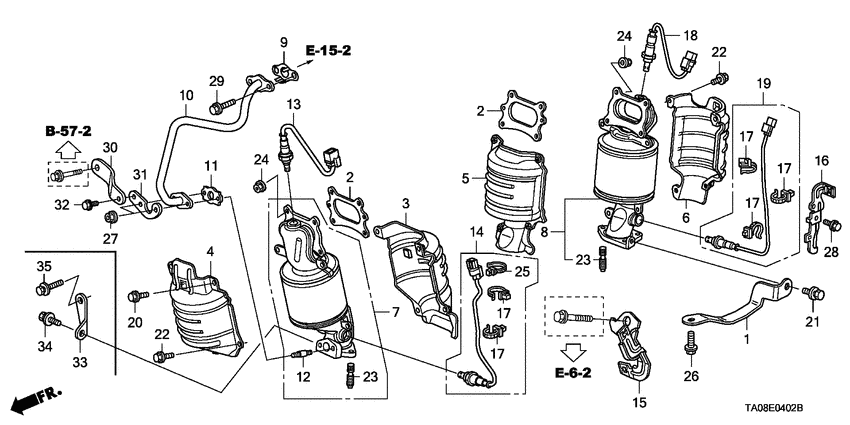

Converter (3.5L) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 3.5
- abs
- +
- area code
- KD
- left-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11941-RCA-A00
Stay
|
11941-RCA-A00 |
— | ||
|
2
|
2
18115-R70-A01 GasketEX. CHAMBER (NIPPON LEAKLESS) |
18115-R70-A01 |
from US $20.74 |
||
|
3
|
3
18120-R70-A00 Cover aFR. PRIMARY CONVERTER |
18120-R70-A00 |
US $27.65 |
||
|
4
|
4
18121-R70-A00 Cover bFR. PRIMARY CONVERTER |
18121-R70-A00 |
US $27.65 |
||
|
5
|
5
18122-R70-A00 Cover comp. aRR. PRIMARY CONVERTER |
18122-R70-A00 |
US $27.65 |
||
|
6
|
6
18123-R70-A00 Cover comp. bRR. PRIMARY CONVERTER |
18123-R70-A00 |
US $27.65 |
||
|
7
|
7
18190-R71-A00
Converter comp.
|
18190-R71-A00 |
— | ||
|
8
|
8
18290-R71-A00
Converter comp.
|
18290-R71-A00 |
— | ||
|
9
|
9
18716-R70-A01 Gasket aEGR PIPE |
18716-R70-A01 |
from US $5.46 |
||
|
10
|
10
18717-R70-A00 Pipe compEGR |
18717-R70-A00 |
US $72.32 |
||
|
11
|
11
18719-R70-A01 Gasket bEGR PIPE |
18719-R70-A01 |
US $5.46 |
||
|
12
|
12
18720-R70-A00 BoltSTUD, 8X29 |
18720-R70-A00 |
US $1.61 |
||
|
13
|
13
36531-R71-L01 SensorFR. LAF |
36531-R71-L01 |
US $217.60 |
||
|
14
|
14
36532-R71-L01 SensorFR. OXYGEN |
36532-R71-L01 |
US $243.20 |
||
|
15
|
15
36534-RJA-J01
Stay
|
36534-RJA-J01 |
— | ||
|
16
|
16
36536-R70-A00
Stay
|
36536-R70-A00 |
— | ||
|
17
|
17
36538-RDM-A01 ClipWIRE HARNESS |
36538-RDM-A01 |
US $2.31 |
||
|
18
|
18
36541-R71-L01 SensorRR. LAF |
36541-R71-L01 |
US $217.60 |
||
|
19
|
19
36542-R71-L01 SensorRR. OXYGEN |
36542-R71-L01 |
US $243.20 |
||
|
20
|
20
90003-RNA-A00 BoltFLANGE, 6X12 |
90003-RNA-A00 |
US $2.44 |
||
|
21
|
21
90004-RCA-A00 Bolt-washer8X16 |
90004-RCA-A00 |
US $1.05 |
||
|
22
|
22
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
from US $2.96 |
||
|
23
|
23
90065-PG6-000 Bolt, STUD, 10X24 |
90065-PG6-000 |
US $2.31 |
||
|
24
|
24
90212-RCA-A01 NutSELF-LOCK, 8MM |
90212-RCA-A01 |
from US $2.86 |
||
|
25
|
25
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
26
|
26
93404-080-200-8 Bolt-washer8X20 |
93404-080-200-8 |
from US $0.67 |
||
|
27
|
27
94050-08050 NutFLANGE, 8MM |
94050-08050 |
US $0.52 |
||
|
28
|
28
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
29
|
29
95701-080-220-8 BoltFLANGE, 8X22 |
95701-080-220-8 |
from US $0.78 |
||
|
30
|
30
11942-R70-A00
Stay
|
11942-R70-A00 |
— | ||
|
31
|
31
11943-R70-A00
Stay
|
11943-R70-A00 |
— | ||
|
32
|
32
90001-RME-A00 BoltFLANGE, 8X16 |
90001-RME-A00 |
US $2.03 |
