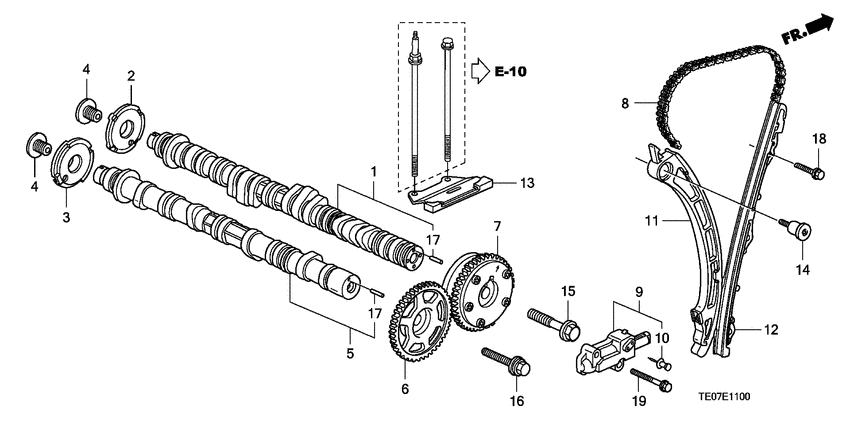

Camshaft/cam chain (L4) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-R40-A00 Camshaft comp.IN. |
14110-R40-A00 |
from US $433.84 |
||
|
2
|
2
14113-PNA-003 PlateCAM PULSE |
14113-PNA-003 |
US $7.56 |
||
|
3
|
3
14114-R40-A01 PlateTDC PULSE |
14114-R40-A01 |
US $7.56 |
||
|
4
|
4
14115-PNA-000 BoltSEALING, 14MM |
14115-PNA-000 |
from US $4.62 |
||
|
5
|
5
14120-R40-A00 Camshaft comp.EX. |
14120-R40-A00 |
from US $461.04 |
||
|
6
|
6
14210-PNA-000 SprocketCAM CHAIN DRIVEN (46T) |
14210-PNA-000 |
from US $61.61 |
||
|
7
|
7
14310-R44-A01
Actuator assy
|
14310-R44-A01 |
— | ||
|
8
|
8
14401-R40-A01 Chain176L |
14401-R40-A01 |
from US $76.84 |
||
|
9
|
9
14510-R40-A01 Tensioner compCAM CHAIN |
14510-R40-A01 |
from US $95 |
||
|
10
|
10
14511-PNA-003 StopperTOOL |
14511-PNA-003 |
US $6.22 |
||
|
11
|
11
14520-RAH-H01 Arm compCAM CHAIN TENSIONER |
14520-RAH-H01 |
from US $84.52 |
||
|
12
|
12
14530-RAA-A01 Guide compCAM CHAIN |
14530-RAA-A01 |
US $32.73 |
||
| replacement | |||||
|
12
|
12
14530-RZA-A01 Guide compCAM CHAIN |
14530-RZA-A01 |
from US $45.75 |
||
|
13
|
13
14540-RAA-A02 Guide comp. bCAM CHAIN |
14540-RAA-A02 |
from US $15.91 |
||
|
14
|
14
90003-PNA-000 BoltTENSIONER PIVOT |
90003-PNA-000 |
from US $4.14 |
||
|
15
|
15
90032-PNA-000 BoltFLANGE, 12X47 |
90032-PNA-000 |
from US $2.86 |
||
|
16
|
16
90042-PNA-003 BoltFLANGE, 10X32 |
90042-PNA-003 |
from US $1.85 |
||
|
17
|
17
90703-PNA-300 Dowel pin4.2X10.3 |
90703-PNA-300 |
from US $1.33 |
||
|
18
|
18
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
19
|
19
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
