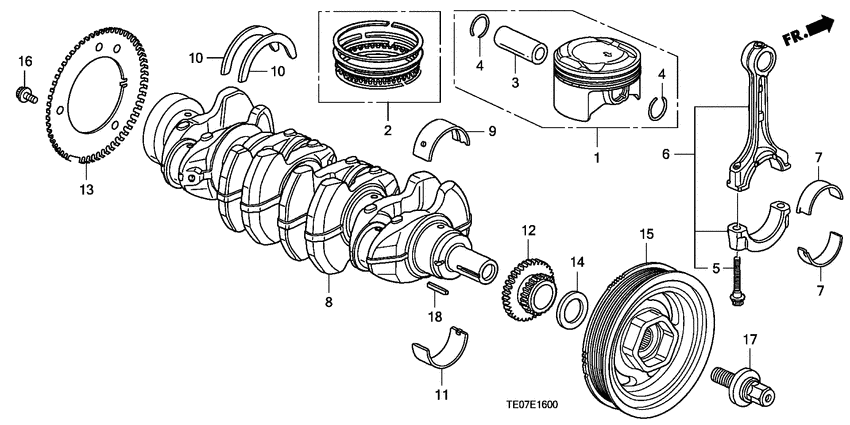

Crankshaft/piston (L4) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13010-R40-A00 Piston set aSTD. |
13010-R40-A00 |
US $55.04 |
||
|
1
|
1
13020-R40-A00 Piston set bSTD. |
13020-R40-A00 |
US $55.04 |
||
|
1
|
1
13030-R40-A00
Piston set
|
13030-R40-A00 |
— | ||
|
2
|
2
13011-R44-A01
Ring set
|
13011-R44-A01 |
— | ||
|
2
|
2
13021-R44-A01
Ring set
|
13021-R44-A01 |
— | ||
|
3
|
3
13111-RAA-A00 PinPISTON |
13111-RAA-A00 |
US $10.22 |
||
|
4
|
4
13115-PRB-A00 ClipPISTON PIN |
13115-PRB-A00 |
US $2.18 |
||
|
5
|
5
13204-RBB-004 BoltCONNECTING ROD |
13204-RBB-004 |
from US $6.66 |
||
|
6
|
6
13210-R40-A00 Rod compCONNECTING |
13210-R40-A00 |
from US $92.16 |
||
|
7
|
7
13213-RBB-003 Bearing cCONNECTING ROD (BROWN) (DAIDO) |
13213-RBB-003 |
US $14.50 |
||
|
7
|
7
13215-RBB-003 Bearing eCONNECTING ROD (YELLOW) (DAIDO) |
13215-RBB-003 |
US $9.94 |
||
|
7
|
7
13217-RBB-003 Bearing gCONNECTING ROD (RED) (DAIDO) |
13217-RBB-003 |
US $9.94 |
||
|
7
|
7
13212-RBB-003 Bearing bCONNECTING ROD (BLACK) (DAIDO) |
13212-RBB-003 |
from US $14.50 |
||
|
7
|
7
13214-RBB-003 Bearing dCONNECTING ROD (GREEN) (DAIDO) |
13214-RBB-003 |
from US $12.74 |
||
|
7
|
7
13216-RBB-003 Bearing fCONNECTING ROD (PINK) (DAIDO) |
13216-RBB-003 |
US $9.94 |
||
|
8
|
8
13310-R40-A00 Crankshaft comp. |
13310-R40-A00 |
from US $760.36 |
||
|
9
|
9
13326-PRB-A01 Bearing fMAIN UPPER(PINK) (DAIDO) |
13326-PRB-A01 |
US $10.92 |
||
|
9
|
9
13323-PRB-A01 Bearing cMAIN UPPER(BROWN) (DAIDO) |
13323-PRB-A01 |
US $14.82 |
||
|
9
|
9
13325-PRB-A01 Bearing eMAIN UPPER(YELLOW) (DAIDO) |
13325-PRB-A01 |
US $10.92 |
||
|
9
|
9
13327-PRB-A01 Bearing gMAIN UPPER(RED) (DAIDO) |
13327-PRB-A01 |
US $10.92 |
||
|
9
|
9
13322-PRB-A01 Bearing bMAIN UPPER(BLACK) (DAIDO) |
13322-PRB-A01 |
US $14.82 |
||
|
9
|
9
13324-PRB-A01 Bearing dMAIN UPPER(GREEN) (DAIDO) |
13324-PRB-A01 |
US $16.32 |
||
|
10
|
10
13331-PNA-004 WasherTHRUST(TAIHO) |
13331-PNA-004 |
from US $7.10 |
||
|
11
|
11
13346-PRB-A01 Bearing fMAIN LOWER(PINK) (DAIDO) |
13346-PRB-A01 |
US $10.92 |
||
|
11
|
11
13343-PRB-A01 Bearing cMAIN LOWER(BROWN) (DAIDO) |
13343-PRB-A01 |
US $14.82 |
||
|
11
|
11
13345-PRB-A01 Bearing eMAIN LOWER(YELLOW) (DAIDO) |
13345-PRB-A01 |
US $10.92 |
||
|
11
|
11
13347-PRB-A01 Bearing gMAIN LOWER(RED) (DAIDO) |
13347-PRB-A01 |
US $10.64 |
||
|
11
|
11
13342-PRB-A01 Bearing bMAIN LOWER(BLACK) (DAIDO) |
13342-PRB-A01 |
US $14.82 |
||
|
11
|
11
13344-PRB-A01 Bearing dMAIN LOWER(GREEN) (DAIDO) |
13344-PRB-A01 |
US $16.32 |
||
|
12
|
12
13620-RAA-A02 Sprocket compCHAIN DRIVE |
13620-RAA-A02 |
from US $70.72 |
||
|
13
|
13
13622-R40-A00 PlateCRANK PULSER |
13622-R40-A00 |
US $16.64 |
||
|
14
|
14
13623-R40-A01
Spacer a
|
13623-R40-A01 |
— | ||
|
15
|
15
13810-R40-A01 Pulley compCRANKSHAFT |
13810-R40-A01 |
from US $111.52 |
||
|
16
|
16
90013-R70-A01 BoltSPECIAL, 8X11 |
90013-R70-A01 |
US $2 |
||
|
17
|
17
90017-RWC-A01 Bolt-washer16X49 |
90017-RWC-A01 |
from US $11.69 |
||
|
18
|
18
90704-PNA-000 Key4.5X21 |
90704-PNA-000 |
from US $2.17 |
