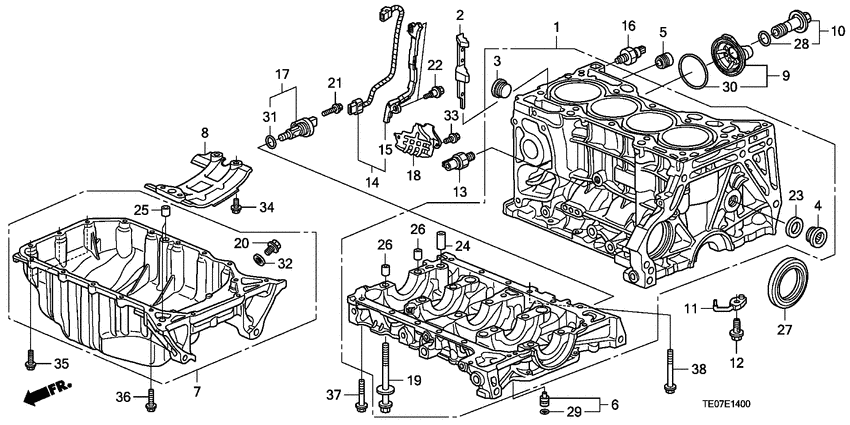

Cylinder block/oil pan (L4) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-R40-A00 Block assyCYLINDER |
11000-R40-A00 |
US $2,064.64 |
||
|
2
|
2
11103-R40-A01 PlatePARTITION |
11103-R40-A01 |
US $12.18 |
||
|
3
|
3
11106-PNA-300 BoltSEALING, 20MM |
11106-PNA-300 |
from US $3.08 |
||
|
4
|
4
11106-PR4-013 BoltSEALING, 28MM |
11106-PR4-013 |
from US $5.14 |
||
|
5
|
5
11108-PT0-003 BoltSEALING, 18MM |
11108-PT0-003 |
US $2.73 |
||
|
6
|
6
11135-RAA-A00 Orifice assyLOWER BLOCK |
11135-RAA-A00 |
US $3.08 |
||
|
7
|
7
11200-R40-A00 Pan assyOIL |
11200-R40-A00 |
from US $282.88 |
||
|
8
|
8
11221-R40-A00 Plate aBAFFLE |
11221-R40-A00 |
US $13.82 |
||
|
9
|
9
11500-R40-A00 Cap comp.OIL GALLERY |
11500-R40-A00 |
US $23.55 |
||
|
10
|
10
11550-RZA-000 Bolt compGALLERY CAP |
11550-RZA-000 |
US $22.14 |
||
|
11
|
11
15280-R40-A01 Body compOIL JET |
15280-R40-A01 |
US $11.06 |
||
|
12
|
12
15290-R40-A01 Bolt compOIL JET |
15290-R40-A01 |
from US $17.95 |
||
|
13
|
13
30530-R40-A01 Sensor compKNOCK |
30530-R40-A01 |
US $55.04 |
||
|
14
|
14
32113-R40-A00
Sub cord
|
32113-R40-A00 |
— | ||
|
15
|
15
32129-R40-A00 HolderCRANK SUB CORD |
32129-R40-A00 |
US $4.06 |
||
|
16
|
16
37241-RNA-A01 Switch assy, OIL PRESSUREOIL PRESSURE |
37241-RNA-A01 |
from US $33.05 |
||
|
17
|
17
37500-R40-A01 Sensor assyCRANK |
37500-R40-A01 |
from US $69.56 |
||
|
18
|
18
37503-R40-A00 CoverCRANK SENSOR |
37503-R40-A00 |
US $5.04 |
||
|
19
|
19
90006-PNA-003 Bolt-washer11X95 |
90006-PNA-003 |
from US $3.40 |
||
|
20
|
20
90009-PY3-000 DRAIN PLUG BOLT, 14MM |
90009-PY3-000 |
from US $2.92 |
||
|
21
|
21
90028-PNB-003 BoltSPECIAL, 6X20.5(GUIDE) |
90028-PNB-003 |
US $1.63 |
||
|
22
|
22
90051-RGA-003 BoltSPECIAL, 6X20.8 |
90051-RGA-003 |
US $1.61 |
||
|
23
|
23
90401-PR4-000 WasherSEALING, 28MM |
90401-PR4-000 |
from US $1.89 |
||
|
24
|
24
90703-PE0-000 Dowel pin18X22 |
90703-PE0-000 |
from US $3.29 |
||
|
25
|
25
90715-PC6-000 Dowel pin13X20 |
90715-PC6-000 |
from US $2.25 |
||
|
26
|
26
90715-PNA-000 Dowel pin13X14 |
90715-PNA-000 |
from US $2.03 |
||
|
27
|
27
91214-RZY-A01 Oil seal80X98X10 (ARAI) |
91214-RZY-A01 |
US $13.87 |
||
|
28
|
28
91304-RZA-000 O-ring32X2.4 |
91304-RZA-000 |
from US $1.89 |
||
|
29
|
29
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $1.78 |
||
|
30
|
30
91316-PE7-730 O-ring62.4X3.1 |
91316-PE7-730 |
from US $4.22 |
||
|
31
|
31
91333-PNA-003 O-ring15X1.9 |
91333-PNA-003 |
from US $1.39 |
||
|
32
|
32
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
33
|
33
95701-060-140-5 BoltFLANGE, 6X14 |
95701-060-140-5 |
US $0.55 |
||
|
34
|
34
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
35
|
35
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
36
|
36
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
37
|
37
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
38
|
38
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
