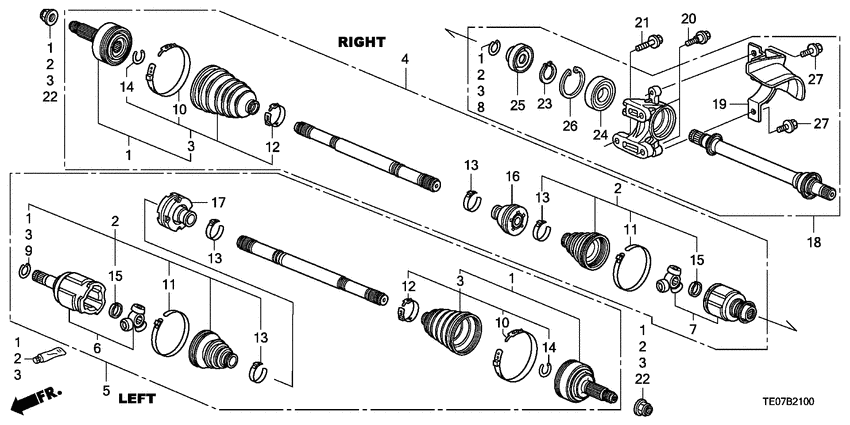

Front driveshaft/ half shaft (L4) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44014-TA0-A50 Joint setOUTBOARD |
44014-TA0-A50 |
US $345.60 |
||
|
2
|
2
44017-TA0-A50 Boot setINBOARD |
44017-TA0-A50 |
US $58.88 |
||
|
3
|
3
44018-TA0-A50 Boot setOUTBOARD |
44018-TA0-A50 |
US $62.15 |
||
|
4
|
4
44305-TA0-A50 Driveshaft assy.R. |
44305-TA0-A50 |
US $698.88 |
||
|
5
|
5
44306-TA0-A50
Driveshaft assy.
|
44306-TA0-A50 |
— | ||
| replacement | |||||
|
5
|
5
44306-TA0-A53 SHAFT ASSYL DRIV |
44306-TA0-A53 |
US $863.19 |
||
|
6
|
6
44310-TA0-A50
Joint comp
|
44310-TA0-A50 |
— | ||
|
7
|
7
44310-TA0-306 Joint setINBOARD |
44310-TA0-306 |
US $308.48 |
||
|
8
|
8
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
10
|
10
44327-SDA-A11 Band bDRIVESHAFT (OETIKER LIMITED) |
44327-SDA-A11 |
US $7.56 |
||
|
11
|
11
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
12
|
12
44329-SDA-A11 Band cDRIVESHAFT (OETIKER LIMITED) |
44329-SDA-A11 |
US $5.88 |
||
|
13
|
13
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
14
|
14
44337-SM1-300 Ring bSTOPPER |
44337-SM1-300 |
US $1.75 |
||
|
15
|
15
44338-SM1-300 Circlip26MM |
44338-SM1-300 |
US $2.45 |
||
|
16
|
16
44351-TA5-A51
Damper
|
44351-TA5-A51 |
— | ||
|
17
|
17
44351-TA5-A61
Damper
|
44351-TA5-A61 |
— | ||
|
18
|
18
44500-TA0-A00
Shaft assy
|
44500-TA0-A00 |
— | ||
|
19
|
19
44517-SED-000 CoverHEAT |
44517-SED-000 |
US $20.86 |
||
|
20
|
20
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
21
|
21
90165-SE0-000
Bolt
|
90165-SE0-000 |
— | ||
|
22
|
22
90305-S3V-A11 NutSPINDLE |
90305-S3V-A11 |
from US $7.16 |
||
|
23
|
23
90681-SR3-000 CirclipEXTERNAL, 33MM |
90681-SR3-000 |
from US $2.66 |
||
|
24
|
24
91057-SR3-008 BearingHALF SHAFT(NTN) |
91057-SR3-008 |
from US $14.65 |
||
|
25
|
25
91260-SDB-A01 SealHALF SHAFT OUTER(NOK) |
91260-SDB-A01 |
from US $7.49 |
||
|
26
|
26
94520-55000 CirclipINTERNAL, 55MM |
94520-55000 |
from US $1.48 |
||
|
27
|
27
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
