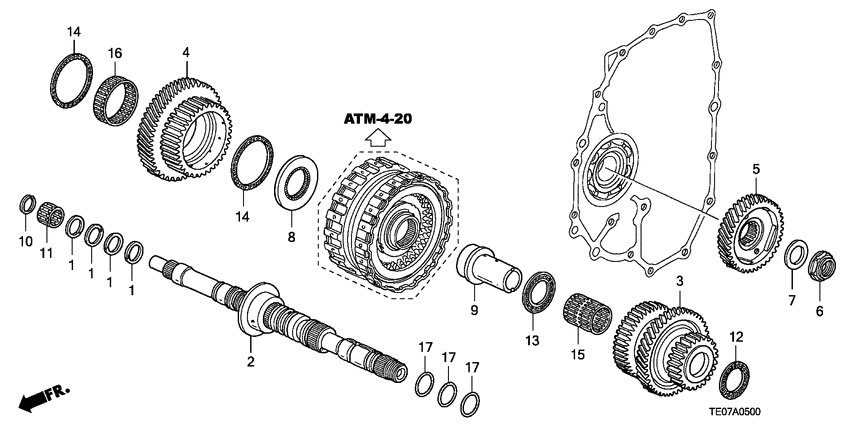

Mainshaft (L4) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22814-PRP-003 RingSEALING, 29MM |
22814-PRP-003 |
from US $5.37 |
||
|
2
|
2
23210-RCL-010 Mainshaft comp. |
23210-RCL-010 |
US $179.20 |
||
|
3
|
3
23461-R90-B00 GearMAINSHAFT FOURTH |
23461-R90-B00 |
US $103.04 |
||
|
4
|
4
23481-RFK-901 GearMAINSHAFT FIFTH |
23481-RFK-901 |
US $96.64 |
||
|
5
|
5
23511-R90-000 GearMAINSHAFT IDLE |
23511-R90-000 |
US $55.04 |
||
|
6
|
6
90203-PX4-010 NutFLANGE, 24MM |
90203-PX4-010 |
US $4.59 |
||
|
7
|
7
90402-P0Z-000
Washer
|
90402-P0Z-000 |
— | ||
|
8
|
8
90427-RCT-000
Washer
|
90427-RCT-000 |
— | ||
|
8
|
8
90422-RCT-000
Washer
|
90422-RCT-000 |
— | ||
|
8
|
8
90417-RCT-000
Washer
|
90417-RCT-000 |
— | ||
|
8
|
8
90424-RCT-000
Washer
|
90424-RCT-000 |
— | ||
|
8
|
8
90419-RCT-000
Washer
|
90419-RCT-000 |
— | ||
|
8
|
8
90414-RCT-000
Washer
|
90414-RCT-000 |
— | ||
|
8
|
8
90426-RCT-000
Washer
|
90426-RCT-000 |
— | ||
|
8
|
8
90421-RCT-000
Washer
|
90421-RCT-000 |
— | ||
|
8
|
8
90416-RCT-000
Washer
|
90416-RCT-000 |
— | ||
|
8
|
8
90428-RCT-000
Washer
|
90428-RCT-000 |
— | ||
|
8
|
8
90423-RCT-000
Washer
|
90423-RCT-000 |
— | ||
|
8
|
8
90418-RCT-000
Washer
|
90418-RCT-000 |
— | ||
|
8
|
8
90425-RCT-000
Washer
|
90425-RCT-000 |
— | ||
|
8
|
8
90420-RCT-000
Washer
|
90420-RCT-000 |
— | ||
|
8
|
8
90415-RCT-000
Washer
|
90415-RCT-000 |
— | ||
|
9
|
9
90501-PRP-000 Collar27X34X66.3 |
90501-PRP-000 |
US $16.64 |
||
|
10
|
10
90603-P4R-000
Set ring
|
90603-P4R-000 |
— | ||
|
11
|
11
91017-PAX-006
Bearing
|
91017-PAX-006 |
— | ||
|
12
|
12
91018-PW7-A02 BearingTHRUST NEEDLE, 34X46X2 |
91018-PW7-A02 |
US $5.04 |
||
|
13
|
13
91023-PCJ-003 BearingTHRUST NEEDLE, 34X53.5X2.5 |
91023-PCJ-003 |
from US $7 |
||
|
14
|
14
91026-PRP-003 BearingTHRUST NEEDLE, 57.6X71X2 |
91026-PRP-003 |
US $7 |
||
|
15
|
15
91107-PRP-003 BearingNEEDLE, 34X40X39.5 |
91107-PRP-003 |
US $9.80 |
||
|
16
|
16
91109-PRP-003 BearingNEEDLE, 52X57X18 |
91109-PRP-003 |
US $8.40 |
||
|
17
|
17
91316-PR9-003 O-ring33X1.9 (ARAI) |
91316-PR9-003 |
US $1.54 |
