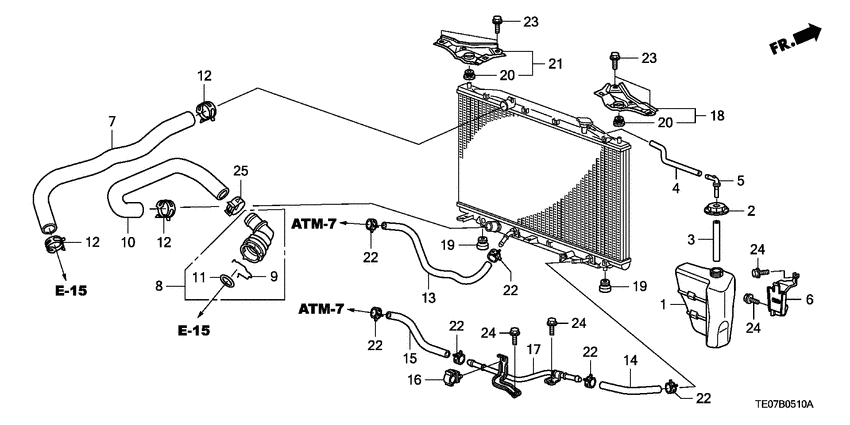

Radiator hose/reserve tan k (L4) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-R40-A00
Tank
|
19101-R40-A00 |
— | ||
|
2
|
2
19102-PM5-A00 CapRESERVE TANK |
19102-PM5-A00 |
from US $3.98 |
||
|
3
|
3
19103-R40-A00 Tube aRESERVE TANK |
19103-R40-A00 |
US $4.46 |
||
|
4
|
4
19104-R40-A00
Tube b
|
19104-R40-A00 |
— | ||
|
5
|
5
19106-RSA-G00 JointRESERVE TANK |
19106-RSA-G00 |
from US $1.39 |
||
|
6
|
6
19115-R40-A00 BracketRESERVE TANK |
19115-R40-A00 |
US $6.72 |
||
|
7
|
7
19501-R40-A01 HoseWATER UPPER |
19501-R40-A01 |
from US $20.86 |
||
|
8
|
8
19503-RAA-A01 ConnectorQUICK WATER |
19503-RAA-A01 |
from US $30.52 |
||
|
9
|
9
19506-RAA-A01
Wire
|
19506-RAA-A01 |
— | ||
|
10
|
10
19506-R40-A01 HoseWATER LOWER |
19506-R40-A01 |
from US $23.55 |
||
|
11
|
11
19507-RAA-A01 O-ring |
19507-RAA-A01 |
US $2.19 |
||
|
12
|
12
19511-PT0-004
Clip
|
19511-PT0-004 |
— | ||
| replacement | |||||
|
12
|
12
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $3.94 |
||
|
13
|
13
25211-R40-003 HoseATF, 500MM(BRIDGESTONE) |
25211-R40-003 |
US $22.91 |
||
|
14
|
14
25212-RAA-006 HoseATF, 210MM(NICHIRIN) |
25212-RAA-006 |
US $9.66 |
||
|
15
|
15
25213-RAA-016
Hose
|
25213-RAA-016 |
— | ||
|
16
|
16
25216-P72-003 ClipATF HOSE (BLACK) |
25216-P72-003 |
US $1.96 |
||
|
17
|
17
25940-R40-000 Pipe comp. dATF |
25940-R40-000 |
US $29.77 |
||
|
18
|
18
74171-TA0-A00 BracketR. RADIATOR UPPER MOUNTING |
74171-TA0-A00 |
US $10.78 |
||
|
19
|
19
74172-TA0-A00 CushionRADIATOR MOUNTING LOWER |
74172-TA0-A00 |
from US $7 |
||
|
20
|
20
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
21
|
21
74176-TA0-A00 BracketL. RADIATOR UPPER MOUNTING |
74176-TA0-A00 |
US $10.78 |
||
|
22
|
22
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
22
|
22
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
23
|
23
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
19511-PT0-004
Clip
|
19511-PT0-004 |
— | ||
| replacement | |||||
|
25
|
25
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $3.94 |
||
