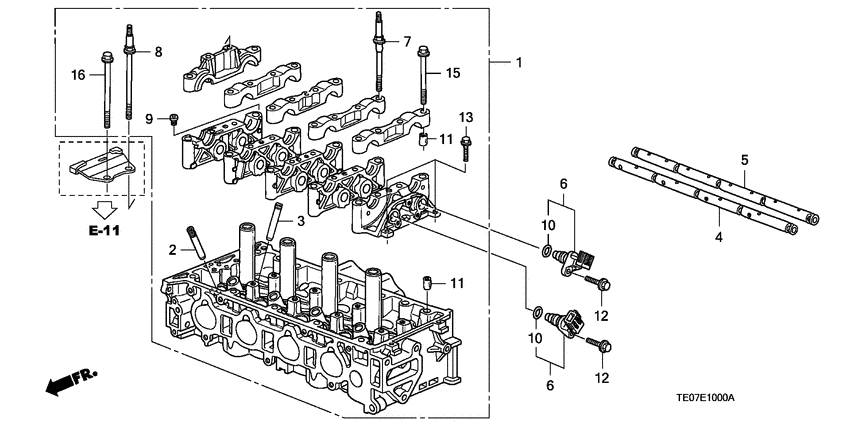

Cylinder head (L4) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-R40-A02 Head assyCYLINDER |
12100-R40-A02 |
US $1,484.80 |
||
|
2
|
2
12204-PNA-305 GuideIN. VALVE (OS) |
12204-PNA-305 |
from US $10.42 |
||
|
3
|
3
12205-PNA-305 GuideEX. VALVE (OS) |
12205-PNA-305 |
US $10.42 |
||
|
4
|
4
14631-R40-A00
Shaft
|
14631-R40-A00 |
— | ||
|
5
|
5
14633-R40-A00 ShaftEX. ROCKER |
14633-R40-A00 |
US $124.81 |
||
|
6
|
6
37510-R40-A01 Sensor assyTDC |
37510-R40-A01 |
US $63.87 |
||
|
7
|
7
90011-PNA-003 Bolt A, Head Cover |
90011-PNA-003 |
from US $5.33 |
||
|
8
|
8
90012-PNA-003 Bolt bHEAD COVER |
90012-PNA-003 |
from US $5.92 |
||
|
9
|
9
90083-PNA-000 BoltSEALING, 10MM |
90083-PNA-000 |
from US $2.38 |
||
|
10
|
10
91333-PNA-003 O-ring15X1.9 |
91333-PNA-003 |
from US $1.39 |
||
|
11
|
11
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
12
|
12
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
13
|
13
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
15
|
15
95701-080-900-8 BoltFLANGE, 8X90 |
95701-080-900-8 |
from US $1.18 |
||
|
16
|
16
95701-081-100-8 BoltFLANGE, 8X110 |
95701-081-100-8 |
from US $0.43 |
