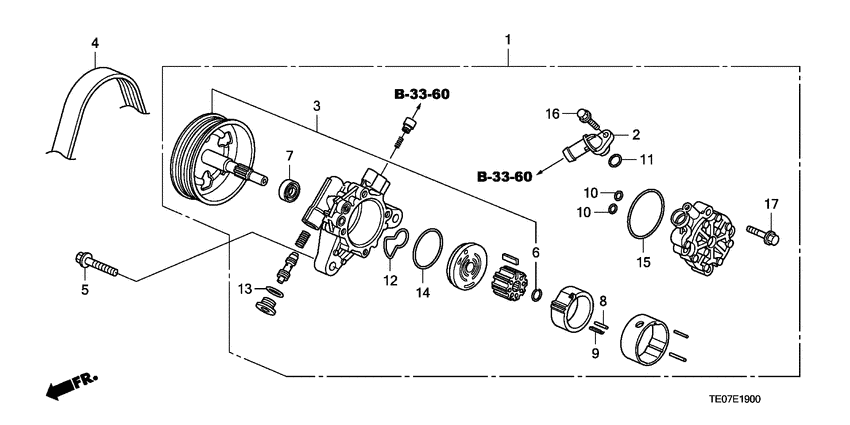

Power steering pump (L4) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- 2.4 EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-R40-A04 Pump assy.POWER STEERING (L4) |
56100-R40-A04 |
US $719.44 |
||
| replacement | |||||
|
1
|
1
56100R40P05 PUMP ASSYPSL4 |
56100R40P05 |
US $932.96 |
||
|
2
|
2
56123-R40-A01 JointIN. |
56123-R40-A01 |
US $19.33 |
||
|
3
|
3
56483-R40-A01
Shaft comp.
|
56483-R40-A01 |
— | ||
|
4
|
4
56992-R40-A01 BeltPOWER STEERING PUMP (BANDO) |
56992-R40-A01 |
from US $38.74 |
||
|
5
|
5
90001-R40-A00 Bolt-washerSPECIAL, 10X47 |
90001-R40-A00 |
US $2.73 |
||
|
6
|
6
90614-RFH-003 RingSNAP, 13MM |
90614-RFH-003 |
US $2.38 |
||
|
7
|
7
91249-R40-A01 SealPOWER STEERING PUMP |
91249-R40-A01 |
from US $4.88 |
||
|
8
|
8
91343-PLA-003 SealRUBBER |
91343-PLA-003 |
from US $2 |
||
|
9
|
9
91344-PLA-003 Seal |
91344-PLA-003 |
from US $2 |
||
|
10
|
10
91345-RJL-003 O-ring13.0X1.9 |
91345-RJL-003 |
from US $1.46 |
||
|
11
|
11
91345-R70-A11 O-ring14.8X1.9 |
91345-R70-A11 |
US $2.29 |
||
|
12
|
12
91346-R40-A01 O-ring |
91346-R40-A01 |
from US $2 |
||
|
13
|
13
91347-PAA-A01 O-ring16.7X1.8 |
91347-PAA-A01 |
from US $1.46 |
||
|
14
|
14
91348-R40-A01 O-ring57.2X1.9 |
91348-R40-A01 |
from US $3.40 |
||
|
15
|
15
91349-R40-A01 SealPUMP COVER |
91349-R40-A01 |
from US $3.43 |
||
|
16
|
16
91350-P8C-A01 BoltFLANGE, 6X20 |
91350-P8C-A01 |
US $1.72 |
||
|
17
|
17
91350-R40-A01 BoltFLANGE, 8X40 |
91350-R40-A01 |
US $2.31 |
||
