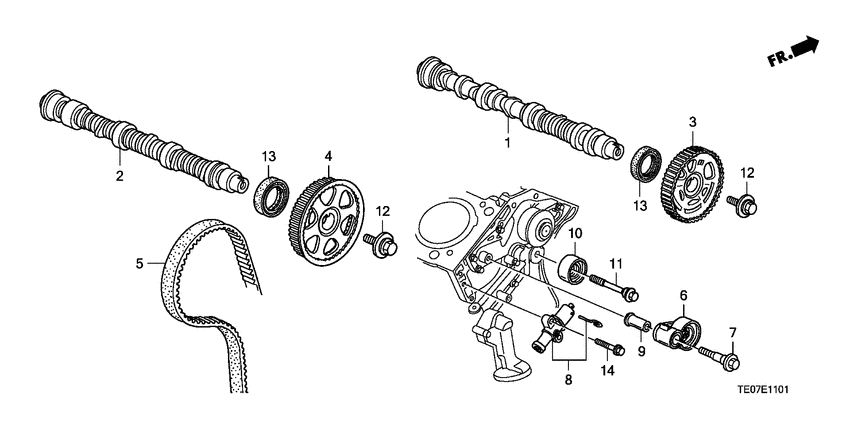

Camshaft/timing belt (V6) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14100-R70-A01
Camshaft comp.
|
14100-R70-A01 |
— | ||
|
2
|
2
14200-R70-A01
Camshaft comp.
|
14200-R70-A01 |
— | ||
|
3
|
3
14260-R70-A01 PulleyFR. TIMING BELT DRIVEN |
14260-R70-A01 |
US $40.39 |
||
|
4
|
4
14270-RCA-A01 PulleyRR. TIMING BELT DRIVEN |
14270-RCA-A01 |
US $34.56 |
||
|
5
|
5
14400-RCA-A01 TIMING BELT (197YU20 VE-501) (UNITTA) |
14400-RCA-A01 |
US $69.48 |
||
|
6
|
6
14510-RCA-A01 TIMING BELT Adjuster comp. |
14510-RCA-A01 |
US $147.04 |
||
|
7
|
7
14513-RCA-A01 BoltTIMING BELT ADJUSTER |
14513-RCA-A01 |
from US $5.48 |
||
|
8
|
8
14520-RCA-A01 Timing Belt Auto Tensioner comp. |
14520-RCA-A01 |
from US $105.47 |
||
|
9
|
9
14530-P13-000 CollarAUTO ADJUSTER |
14530-P13-000 |
from US $15.64 |
||
|
10
|
10
14550-RCA-A01 IDLER, TIMING BELT (KOYO SEIKO) |
14550-RCA-A01 |
from US $44.70 |
||
|
11
|
11
14551-RCA-A01 BoltTIMING BELT IDLER |
14551-RCA-A01 |
from US $4.44 |
||
|
12
|
12
90031-P8A-A01 Bolt-washer12X35 |
90031-P8A-A01 |
from US $5.32 |
||
|
13
|
13
91213-R70-A02 Oil seal39X53X8 (NOK) |
91213-R70-A02 |
from US $11.20 |
||
|
14
|
14
95801-060-300-7 BoltFLANGE, 6X30 |
95801-060-300-7 |
from US $0.59 |
