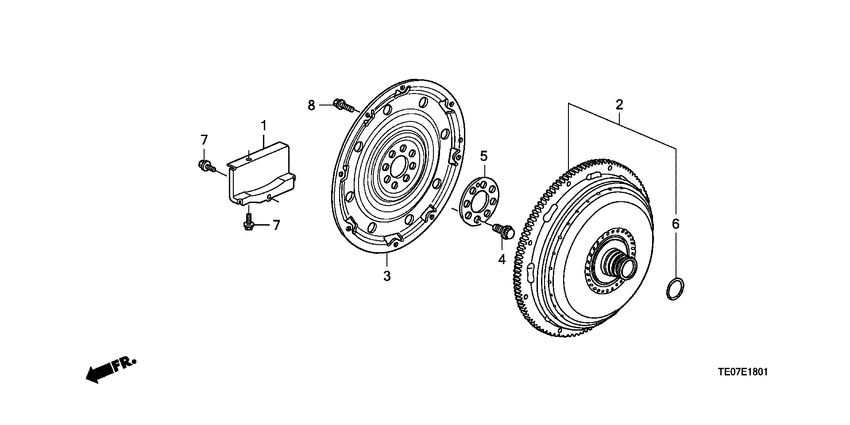

Clutch/torque converter (V6) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21350-RGL-000 Cover comp.TORQUE CONVERTER CASE |
21350-RGL-000 |
US $20.35 |
||
|
2
|
2
26000-R70-305 Converter assyTORQUE |
26000-R70-305 |
US $1,199.36 |
||
|
3
|
3
26251-RDJ-000 PlateDRIVE |
26251-RDJ-000 |
US $72.96 |
||
|
4
|
4
90023-PA9-000 BoltSPECIAL |
90023-PA9-000 |
from US $2.65 |
||
|
5
|
5
90429-PC6-900
Washer
|
90429-PC6-900 |
— | ||
|
6
|
6
91302-PGK-003 O-ring35.5X1.9 |
91302-PGK-003 |
from US $4.66 |
||
|
7
|
7
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
8
|
8
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
