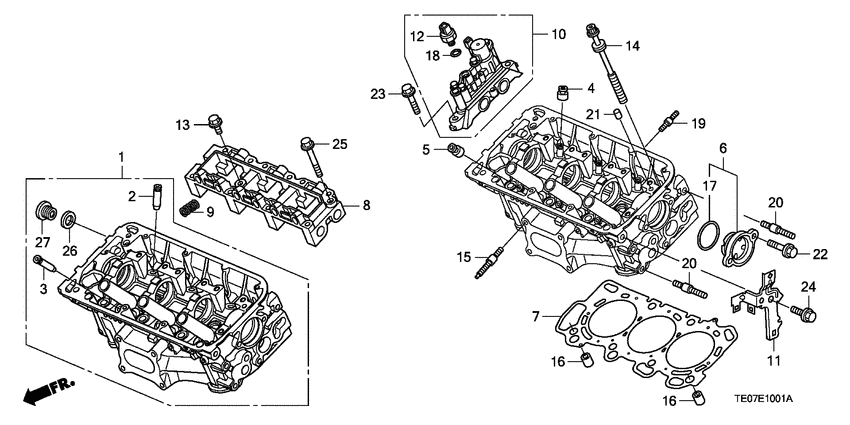

Front cylinder head (V6) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-R70-305 Head assyFR. CYLINDER |
12100-R70-305 |
US $1,420.80 |
||
|
2
|
2
12204-PJ7-305 GuideIN. VALVE (OS) |
12204-PJ7-305 |
from US $8.79 |
||
|
3
|
3
12205-PJ7-305 GuideEX. VALVE (OS) |
12205-PJ7-305 |
from US $10.42 |
||
|
4
|
4
12210-PZ1-003 Seal aVALVE STEM(ARAI) |
12210-PZ1-003 |
from US $4.23 |
||
| replacement | |||||
|
4
|
4
12210-PZ1-004 SEAL A, VALVE STEM (NOK) |
12210-PZ1-004 |
from US $3.64 |
||
|
5
|
5
12211-PZ1-003 Seal bVALVE STEM(ARAI) |
12211-PZ1-003 |
from US $3.13 |
||
|
6
|
6
12230-P8A-A00 Cover assy.FR. CAMSHAFT THRUST |
12230-P8A-A00 |
US $10.78 |
||
|
7
|
7
12251-R70-A01 Gasket compFR. CYLINDER HEAD (NIPPON LEAKLESS) |
12251-R70-A01 |
from US $49.55 |
||
|
8
|
8
12432-R70-A00
Bridge comp
|
12432-R70-A00 |
— | ||
|
9
|
9
14820-R70-A01
Motion comp
|
14820-R70-A01 |
— | ||
|
10
|
10
15810-R70-A03
Valve assy.
|
15810-R70-A03 |
— | ||
| replacement | |||||
|
10
|
10
15810-R70-A04 VALVE ASSY FR SPO |
15810-R70-A04 |
from US $459.05 |
||
|
11
|
11
36533-R70-A00
Stay
|
36533-R70-A00 |
— | ||
|
12
|
12
37240-R70-A03
Switch assy
|
37240-R70-A03 |
— | ||
|
13
|
13
90004-PE2-005 BoltSEALING, 10MM |
90004-PE2-005 |
from US $2.22 |
||
|
14
|
14
90005-PAA-A01 Bolt-washer12X163 |
90005-PAA-A01 |
from US $8.30 |
||
|
15
|
15
90026-P8A-A00 BoltSTUD, 8X41 |
90026-P8A-A00 |
US $1.88 |
||
|
16
|
16
90705-PT0-000 Dowel pin16X22 |
90705-PT0-000 |
from US $1.48 |
||
|
17
|
17
91301-P8A-A00 O-ring48.5X2.4 |
91301-P8A-A00 |
from US $2.91 |
||
|
18
|
18
91319-PAA-A01 O-ring13X1.5 |
91319-PAA-A01 |
from US $2.32 |
||
|
19
|
19
92900-08025-1B BoltSTUD, 8X25 |
92900-08025-1B |
from US $0.74 |
||
|
20
|
20
92900-08032-1B BoltSTUD, 8X32 |
92900-08032-1B |
from US $0.81 |
||
|
21
|
21
94302-08100 Pin bDOWEL, 8X10 |
94302-08100 |
from US $0.98 |
||
|
22
|
22
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
|
23
|
23
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
24
|
24
95701-100-160-8 BoltFLANGE, 10X16 |
95701-100-160-8 |
from US $0.74 |
||
|
25
|
25
95801-080-600-8 BoltFLANGE, 8X60 |
95801-080-600-8 |
US $0.81 |
||
|
26
|
26
12207-634-300
Washer
|
12207-634-300 |
— | ||
|
27
|
27
12208-P8C-A01 BoltSEALING, 28MM |
12208-P8C-A01 |
US $5.74 |
||
