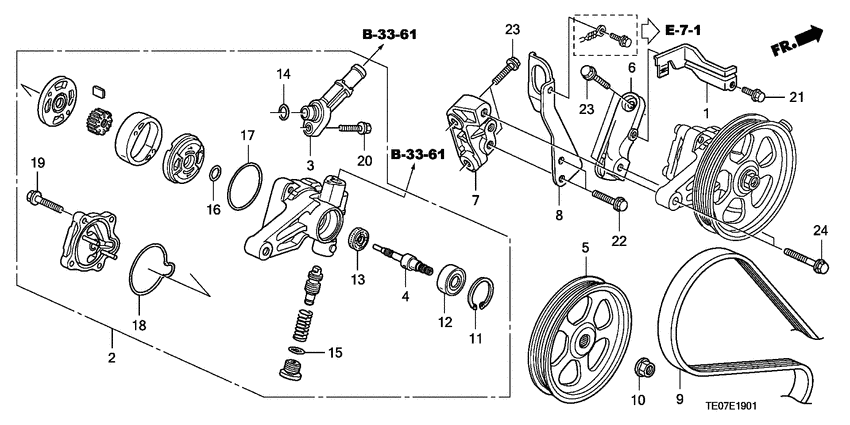

Power steering pump/ bracket (V6) Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EX
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32115-RCA-A00
Stay
|
32115-RCA-A00 |
— | ||
|
2
|
2
56110-R70-A11
Pump sub assy
|
56110-R70-A11 |
— | ||
|
3
|
3
56123-R70-A11 JointIN. |
56123-R70-A11 |
US $22.02 |
||
|
4
|
4
56141-PAA-A01
Shaft
|
56141-PAA-A01 |
— | ||
|
5
|
5
56483-RCA-A01 PulleyPOWER STEERING PUMP |
56483-RCA-A01 |
US $53.41 |
||
|
6
|
6
56950-RCA-A01 BracketFR. POWER STEERING PUMP |
56950-RCA-A01 |
US $22.91 |
||
|
7
|
7
56961-RCA-A00 BracketRR. POWER STEERING PUMP |
56961-RCA-A00 |
US $22.91 |
||
|
8
|
8
56965-RCA-A02 Plate compENGINE HANGER |
56965-RCA-A02 |
US $10.92 |
||
|
9
|
9
56992-R70-A01 BeltPOWER STEERING PUMP (MITSUBOSHI) |
56992-R70-A01 |
from US $46.13 |
||
|
10
|
10
90305-PAA-A01 NutPOWER STEERING PULLEY |
90305-PAA-A01 |
from US $2.44 |
||
|
11
|
11
90693-P2A-003 CirclipINTERNAL, 40MM |
90693-P2A-003 |
US $2.59 |
||
|
11
|
11
90693-PAA-A01 CirclipINTERNAL, 40MM |
90693-PAA-A01 |
US $2.74 |
||
|
12
|
12
91048-P2A-003 BearingRADIAL BALL, 17X40X12 |
91048-P2A-003 |
from US $9.90 |
||
|
13
|
13
91249-PNC-003 SealPOWER STEERING PUMP |
91249-PNC-003 |
from US $3.10 |
||
|
14
|
14
91345-R70-A11 O-ring14.8X1.9 |
91345-R70-A11 |
US $2.29 |
||
|
15
|
15
91347-PAA-A01 O-ring16.7X1.8 |
91347-PAA-A01 |
from US $1.46 |
||
|
16
|
16
91347-P2A-003 O-ring15.2X2.4 |
91347-P2A-003 |
from US $1.47 |
||
|
17
|
17
91348-P2A-003 O-ring51.0X2.4 |
91348-P2A-003 |
from US $3.94 |
||
|
18
|
18
91349-P2A-003 SealPOWER STEERING PUMP COVER |
91349-P2A-003 |
from US $3.98 |
||
|
19
|
19
91350-PLA-003 BoltFLANGE, 8X35 |
91350-PLA-003 |
US $1.82 |
||
|
20
|
20
91350-P8C-A01 BoltFLANGE, 6X20 |
91350-P8C-A01 |
US $1.72 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
22
|
22
95701-080-220-8 BoltFLANGE, 8X22 |
95701-080-220-8 |
from US $0.78 |
||
|
23
|
23
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
|
24
|
24
95701-080-400-7 BoltFLANGE, 8X40 |
95701-080-400-7 |
from US $0.81 |
