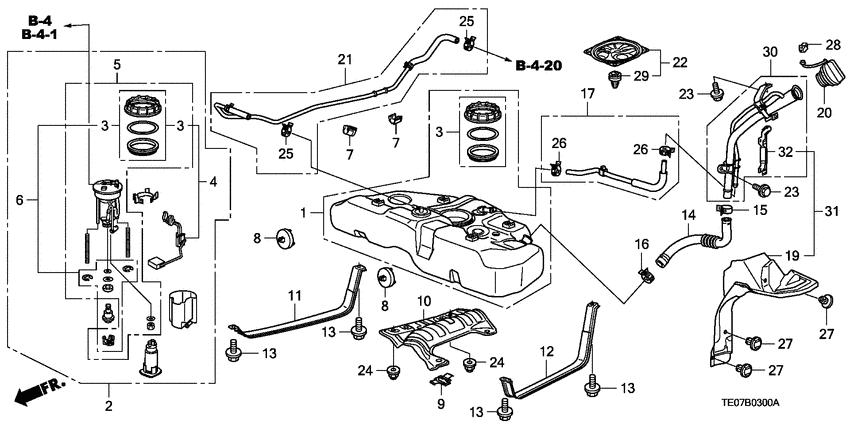

Fuel tank Diagram Honda ACCORD
- Year
- 2008
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17044-TA6-000
Tank set
|
17044-TA6-000 |
— | ||
|
2
|
2
17045-TA6-000
Module set
|
17045-TA6-000 |
— | ||
|
3
|
3
17046-TA6-000
Nut & packing set
|
17046-TA6-000 |
— | ||
|
4
|
4
17047-TA6-000
Meter set
|
17047-TA6-000 |
— | ||
|
5
|
5
17048-TA6-000
Strainer set
|
17048-TA6-000 |
— | ||
|
6
|
6
17052-TA6-000
Regulator set
|
17052-TA6-000 |
— | ||
|
7
|
7
17508-TA0-G01 ClipFUEL VENT |
17508-TA0-G01 |
US $1.40 |
||
|
8
|
8
17512-TA0-A01 CushionFUEL TANK |
17512-TA0-A01 |
US $3.08 |
||
|
9
|
9
17513-TA0-A00 CirclipPROTECTOR |
17513-TA0-A00 |
US $2.31 |
||
|
10
|
10
17518-TA0-A00 ProtectorFUEL TANK |
17518-TA0-A00 |
US $34.56 |
||
|
11
|
11
17521-TA0-A00 BandR. FUEL TANK MOUNTING |
17521-TA0-A00 |
US $24.83 |
||
|
12
|
12
17522-TA0-A00 BandL. FUEL TANK MOUNTING |
17522-TA0-A00 |
US $22.14 |
||
|
13
|
13
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $1.78 |
||
|
14
|
14
17651-TA0-G01
Tube comp
|
17651-TA0-G01 |
— | ||
|
15
|
15
17652-SDA-A31 ClipFILLER TUBE |
17652-SDA-A31 |
US $2.87 |
||
|
16
|
16
17652-SEL-003 ClipFILLER TUBE (39MM) |
17652-SEL-003 |
US $3.01 |
||
|
17
|
17
17653-TA0-G01
Tube assy
|
17653-TA0-G01 |
— | ||
|
19
|
19
17668-TA0-A02 CoverFUEL FILLER PIPE |
17668-TA0-A02 |
US $18.30 |
||
|
20
|
20
17670-SJA-013
Cap comp. FUEL FILLER
|
17670-SJA-013 |
— | ||
| replacement | |||||
|
20
|
20
17670-T3W-003 CAP, FUEL FILLER |
17670-T3W-003 |
from US $40.39 |
||
|
21
|
21
17710-TA0-G00
Tube assy
|
17710-TA0-G00 |
— | ||
|
22
|
22
74660-TA0-A00 Cap assy.FLOOR MAINTENANCE HOLE |
74660-TA0-A00 |
US $11.48 |
||
|
23
|
23
90150-S04-003 BoltEARTH, 6X16 |
90150-S04-003 |
US $1.88 |
||
|
24
|
24
90361-TA0-A00 NutCAP, 6MM |
90361-TA0-A00 |
US $1.61 |
||
|
25
|
25
91404-TA0-G01 ClampFUEL TUBE (D10) |
91404-TA0-G01 |
US $1.33 |
||
|
26
|
26
91462-SDA-003 ClampFUEL TUBE (D18) |
91462-SDA-003 |
US $1.19 |
||
|
27
|
27
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
28
|
28
91594-SNA-A01 ClipFILLER CAP |
91594-SNA-A01 |
US $2.31 |
||
|
29
|
29
91601-TA0-003 ClipFUEL MAINTENANCE HOLE CAP |
91601-TA0-003 |
US $1.40 |
||
|
30
|
30
17661-TA0-G00 Protector assyFUEL FILLER PIPE |
17661-TA0-G00 |
US $121.60 |
||
|
31
|
31
17667-TA0-G00 Cover setFUEL FILLER 00000000 - 8A600168 |
17667-TA0-G00 |
US $30.59 |
||
|
32
|
32
17669-TA0-G01 ProtectorFUEL FILLER PIPE |
17669-TA0-G01 |
US $12.46 |
||
