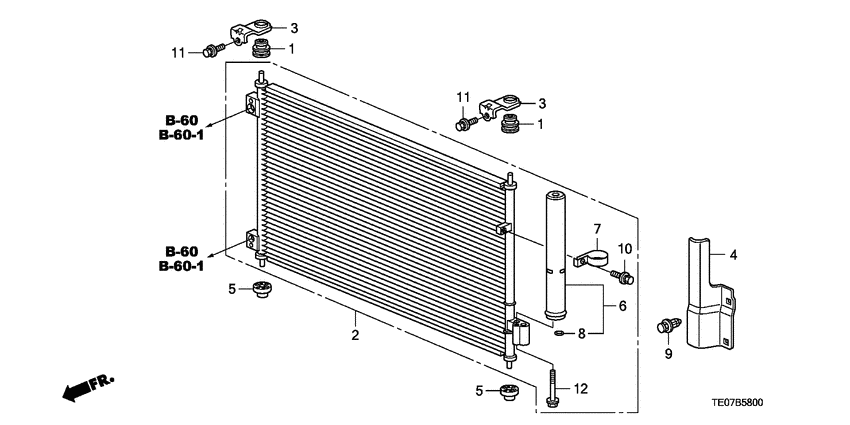

Air conditioner (CONDENSER) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80107-S2X-000 MountCONDENSER UPPER |
80107-S2X-000 |
US $2.34 |
||
|
2
|
2
80110-TA0-A01 Condenser comp. |
80110-TA0-A01 |
US $545.28 |
||
|
3
|
3
80111-TA0-A00 BracketCONDENSER UPPER |
80111-TA0-A00 |
from US $1.75 |
||
|
4
|
4
80116-TA0-A00 SealL. CONDENSER |
80116-TA0-A00 |
US $5.04 |
||
|
5
|
5
80175-SE0-000 MountCONDENSER |
80175-SE0-000 |
from US $3.03 |
||
|
6
|
6
80351-SDC-A01 Receiver comp |
80351-SDC-A01 |
from US $75.52 |
||
|
7
|
7
80352-SDA-A01 Clamp |
80352-SDA-A01 |
US $3.01 |
||
|
8
|
8
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
9
|
9
91505-S9A-003 Clip ABUMPER |
91505-S9A-003 |
from US $1.55 |
||
|
10
|
10
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
11
|
11
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
12
|
12
95701-060-550-4 BoltFLANGE, 6X55 |
95701-060-550-4 |
US $0.74 |
