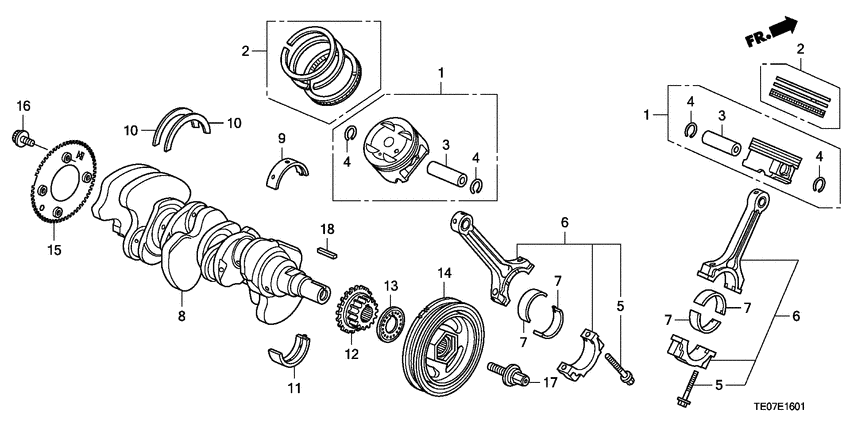

Crankshaft/piston (V6) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13010-R70-A00 Piston setSTD. |
13010-R70-A00 |
US $72.76 |
||
|
1
|
1
13030-R70-A00
Piston set
|
13030-R70-A00 |
— | ||
|
2
|
2
13021-R70-A02 Ring setPISTON (OS 0.25) (ALLIED RING) |
13021-R70-A02 |
US $43.65 |
||
|
2
|
2
13011-R70-A02
Ring set
|
13011-R70-A02 |
— | ||
|
3
|
3
13111-P8A-A00 PinPISTON |
13111-P8A-A00 |
US $10.22 |
||
|
4
|
4
13115-PRB-A00 ClipPISTON PIN |
13115-PRB-A00 |
US $2.18 |
||
|
5
|
5
13204-P8A-A01 BoltCONNECTING ROD |
13204-P8A-A01 |
from US $3.58 |
||
|
6
|
6
13210-R70-A00 Rod compCONNECTING |
13210-R70-A00 |
from US $100.64 |
||
|
7
|
7
13213-P8F-A11 Bearing c (GREEN)CONNECTING ROD (GREEN) (TAIHO) |
13213-P8F-A11 |
from US $12.74 |
||
|
7
|
7
13215-P8F-A11 Bearing e (PINK)CONNECTING ROD (PINK) (TAIHO) |
13215-P8F-A11 |
from US $9.62 |
||
|
7
|
7
13212-P8F-A11 Bearing bCONNECTING ROD (BROWN) (TAIHO) |
13212-P8F-A11 |
from US $12.14 |
||
|
7
|
7
13214-P8F-A11 Bearing d (YELLOW)CONNECTING ROD (YELLOW) (TAIHO) |
13214-P8F-A11 |
from US $10.51 |
||
|
7
|
7
13211-P8F-A11 Bearing a (BLACK)CONNECTING ROD (BLACK) (TAIHO) |
13211-P8F-A11 |
from US $10.51 |
||
|
8
|
8
13310-R70-A00 Crankshaft comp. |
13310-R70-A00 |
US $1,091.84 |
||
|
9
|
9
13322-RYE-A02 Bearing bMAIN UPPER (BROWN) (TAIHO) |
13322-RYE-A02 |
US $12.60 |
||
|
9
|
9
13324-RYE-A02 Bearing dMAIN UPPER (YELLOW) (TAIHO) |
13324-RYE-A02 |
US $13.32 |
||
|
9
|
9
13326-RYE-A01 Bearing fMAIN UPPER (RED) (TAIHO) |
13326-RYE-A01 |
US $12.60 |
||
|
9
|
9
13321-RYE-A02 BEARING AMAIN UPPER (BLACK) (TAIHO) |
13321-RYE-A02 |
US $11.68 |
||
|
9
|
9
13323-RYE-A02 Bearing cMAIN UPPER (GREEN) (TAIHO) |
13323-RYE-A02 |
from US $12.60 |
||
|
9
|
9
13325-RYE-A02 Bearing eMAIN UPPER (PINK) (TAIHO) |
13325-RYE-A02 |
US $12.60 |
||
|
10
|
10
13331-P8A-A01 WasherTHRUST |
13331-P8A-A01 |
from US $9.47 |
||
|
11
|
11
13342-RYE-A02 Bearing bMAIN LOWER (BROWN) (TAIHO) |
13342-RYE-A02 |
from US $12.60 |
||
|
11
|
11
13344-RYE-A02 Bearing dMAIN LOWER (YELLOW) (TAIHO) |
13344-RYE-A02 |
from US $13.32 |
||
|
11
|
11
13346-RYE-A01 Bearing fMAIN LOWER (RED) (TAIHO) |
13346-RYE-A01 |
US $12.60 |
||
|
11
|
11
13341-RYE-A02 BEARING AMAIN LOWER (BLACK) (TAIHO) |
13341-RYE-A02 |
US $11.68 |
||
|
11
|
11
13343-RYE-A02 Bearing cMAIN LOWER (GREEN) (TAIHO) |
13343-RYE-A02 |
US $12.60 |
||
|
11
|
11
13345-RYE-A02 Bearing eMAIN LOWER (PINK) (TAIHO) |
13345-RYE-A02 |
US $12.60 |
||
|
12
|
12
13621-RCA-A11 PulleyTIMING BELT DRIVE |
13621-RCA-A11 |
US $49.52 |
||
|
13
|
13
13622-RJA-000 PlateTIMING BELT GUIDE |
13622-RJA-000 |
US $3.58 |
||
|
14
|
14
13810-R70-A01 Pulley compCRANKSHAFT |
13810-R70-A01 |
US $143.36 |
||
|
15
|
15
13910-R70-A00 PlateCRANK PULSER |
13910-R70-A00 |
US $18.30 |
||
|
16
|
16
90013-R70-A01 BoltSPECIAL, 8X11 |
90013-R70-A01 |
US $2 |
||
|
17
|
17
90017-RJA-003 Bolt-washer16X49 |
90017-RJA-003 |
from US $12.28 |
||
|
18
|
18
90704-RCA-A00 Key4.5X24 |
90704-RCA-A00 |
from US $3.08 |
