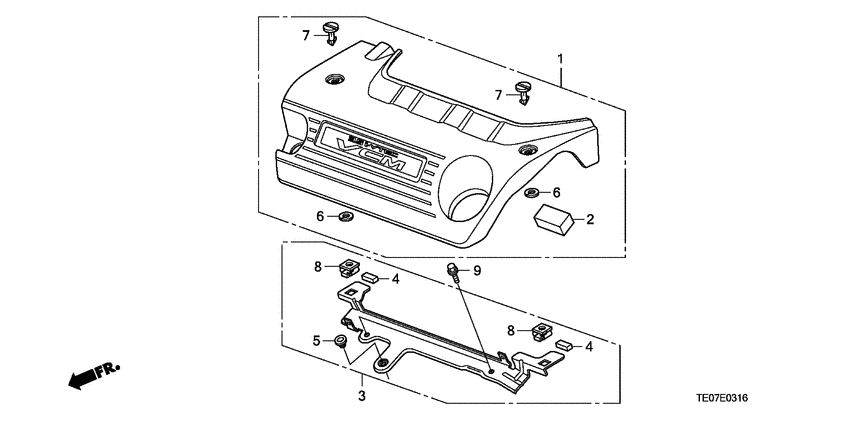

Engine cover (V6) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17122-R70-A10 Cover assy.ENGINE |
17122-R70-A10 |
US $87.04 |
||
|
2
|
2
17141-R70-A00 RubberENGINE COVER |
17141-R70-A00 |
US $2.31 |
||
|
3
|
3
17147-R70-A00
Stay assy
|
17147-R70-A00 |
— | ||
|
4
|
4
17148-R70-A00 Rubber aENGINE COVER |
17148-R70-A00 |
US $2.03 |
||
|
5
|
5
17213-P0G-A00 RubberINTAKE COVER MOUNT |
17213-P0G-A00 |
from US $1.58 |
||
|
6
|
6
90501-SS8-A01 Retainer |
90501-SS8-A01 |
from US $1.23 |
||
|
7
|
7
91501-SS8-A01
Stud
|
91501-SS8-A01 |
— | ||
|
8
|
8
91601-SS8-A01 Receptacle1.0 |
91601-SS8-A01 |
from US $3.01 |
||
|
9
|
9
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
