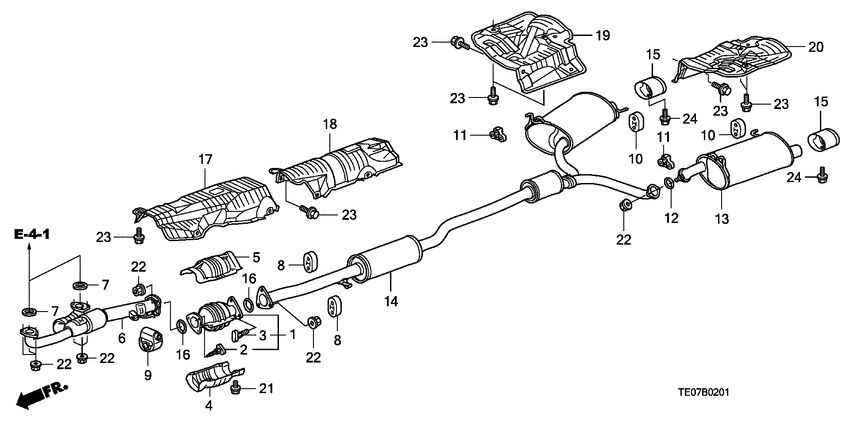

Exhaust pipe (V6) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18160-R70-A00 Converter comp. |
18160-R70-A00 |
US $1,123.84 |
||
|
2
|
2
18176-PT0-003 BoltCONVERTER |
18176-PT0-003 |
US $7 |
||
|
3
|
3
18176-P08-003 BoltCONVERTER |
18176-P08-003 |
US $7 |
||
|
4
|
4
18181-R70-A00 CoverLOWER |
18181-R70-A00 |
US $34.82 |
||
|
5
|
5
18182-R70-A00
Cover
|
18182-R70-A00 |
— | ||
|
6
|
6
18210-TA6-A01
Pipe a
|
18210-TA6-A01 |
— | ||
|
7
|
7
18212-SA7-003 GasketEX. PIPE (ISHINO) |
18212-SA7-003 |
from US $5.37 |
||
|
8
|
8
18215-S84-A20 RubberEX. MOUNTING |
18215-S84-A20 |
from US $5.62 |
||
|
9
|
9
18215-TA0-A01 RubberEX. MOUNTING |
18215-TA0-A01 |
from US $7.56 |
||
|
10
|
10
18215-TA0-A11 RubberEX. MOUNTING |
18215-TA0-A11 |
from US $10.50 |
||
|
11
|
11
18215-TA0-A21 RubberEX. MOUNTING |
18215-TA0-A21 |
US $6.86 |
||
|
12
|
12
18303-SM4-020 GasketSILENCER |
18303-SM4-020 |
from US $5.32 |
||
|
13
|
13
18305-TE1-A03
Silencer comp
|
18305-TE1-A03 |
— | ||
|
14
|
14
18307-TE1-A03
Silencer comp
|
18307-TE1-A03 |
— | ||
|
15
|
15
18310-TA1-A03 FinisherEX. |
18310-TA1-A03 |
US $83.84 |
||
|
16
|
16
18393-SDB-A00 GasketPRE-CHAMBER |
18393-SDB-A00 |
US $7.49 |
||
|
17
|
17
74601-TA0-A00 Plate aFR. FLOOR HEAT BAFFLE |
74601-TA0-A00 |
US $38.02 |
||
|
18
|
18
74602-TE0-A00
Plate b
|
74602-TE0-A00 |
— | ||
|
19
|
19
74654-TA1-A00 PlateR. SILENCER BAFFLE |
74654-TA1-A00 |
US $27.65 |
||
|
20
|
20
74694-TA1-A00 PlateL. SILENCER BAFFLE |
74694-TA1-A00 |
US $27.65 |
||
|
21
|
21
90023-PK1-000
Bolt
|
90023-PK1-000 |
— | ||
| replacement | |||||
|
21
|
21
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
22
|
22
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
23
|
23
93404-060-120-5
Bolt-washer
|
93404-060-120-5 |
— | ||
| replacement | |||||
|
23
|
23
93404-060-140-5 Bolt-washer6X14 |
93404-060-140-5 |
from US $0.52 |
||
|
24
|
24
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
