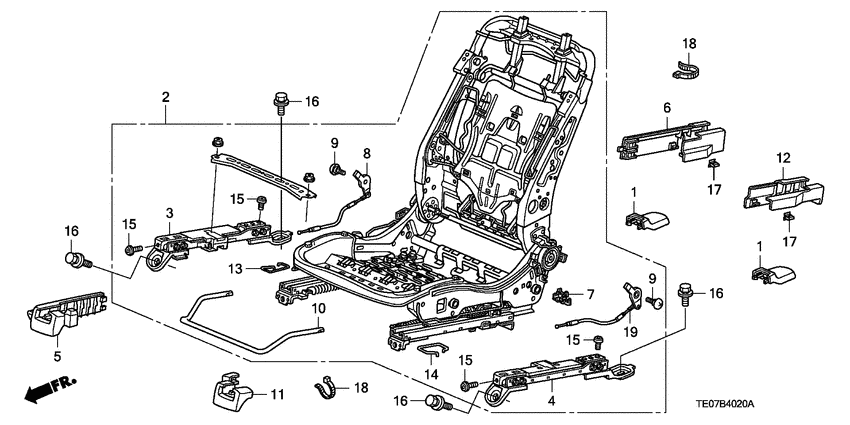

Front seat components (R.) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81106-TE0-A01ZA
Cover
|
81106-TE0-A01ZA |
— | ||
|
2
|
2
81126-TE0-Y02
Frame comp
|
81126-TE0-Y02 |
— | ||
|
3
|
3
81167-TE0-Y01
Sensor assy
|
81167-TE0-Y01 |
— | ||
|
4
|
4
81168-TE0-Y01
Sensor assy
|
81168-TE0-Y01 |
— | ||
|
5
|
5
81197-TE0-A01ZA
Cover
|
81197-TE0-A01ZA |
— | ||
|
6
|
6
81198-TE0-A01ZA
Cover
|
81198-TE0-A01ZA |
— | ||
|
7
|
7
81261-TA0-A01 CapRAIL END UPPER |
81261-TA0-A01 |
US $2.59 |
||
|
8
|
8
81261-TE0-A01
Cable comp
|
81261-TE0-A01 |
— | ||
|
9
|
9
81262-TE0-A01
Bolt
|
81262-TE0-A01 |
— | ||
|
10
|
10
81274-TE0-A01
Lever
|
81274-TE0-A01 |
— | ||
|
11
|
11
81597-TE0-A01ZA
Cover
|
81597-TE0-A01ZA |
— | ||
|
12
|
12
81598-TE0-A01ZA
Cover
|
81598-TE0-A01ZA |
— | ||
|
13
|
13
81676-TA0-A01
Spring
|
81676-TA0-A01 |
— | ||
|
14
|
14
81677-TA0-A01
Spring
|
81677-TA0-A01 |
— | ||
|
15
|
15
90101-TE0-A01 BoltTORX, 8X15.7 |
90101-TE0-A01 |
US $1.61 |
||
|
16
|
16
90135-S7A-J51 Bolt-washer10X25 |
90135-S7A-J51 |
US $1.89 |
||
|
17
|
17
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
18
|
18
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
19
|
19
81271-TE0-A01
Cable comp
|
81271-TE0-A01 |
— |
