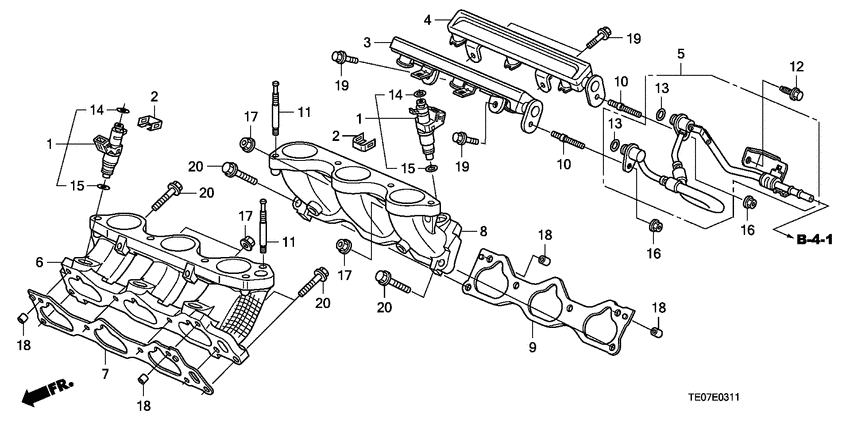

Fuel injector (V6) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16450-R70-A01 Injector assyFUEL |
16450-R70-A01 |
US $125.44 |
||
|
2
|
2
16451-RNV-M00 ClipINJECTOR |
16451-RNV-M00 |
US $3.64 |
||
|
3
|
3
16610-R70-A01 Pipe compFR. FUEL |
16610-R70-A01 |
US $116.48 |
||
|
4
|
4
16620-R70-A01 Pipe compRR. FUEL |
16620-R70-A01 |
US $116.48 |
||
|
5
|
5
16728-R70-A01 Hose comp.FUEL JOINT |
16728-R70-A01 |
US $148.48 |
||
|
6
|
6
17050-RYE-A00 BaseFR. INJECTOR |
17050-RYE-A00 |
US $139.52 |
||
|
7
|
7
17055-RYE-A01 GasketFR. INJECTOR BASE |
17055-RYE-A01 |
US $60.44 |
||
|
8
|
8
17060-RYE-A00 BaseRR. INJECTOR |
17060-RYE-A00 |
US $139.52 |
||
|
9
|
9
17065-RYE-A01 GasketRR. INJECTOR BASE |
17065-RYE-A01 |
US $34.56 |
||
|
10
|
10
90041-R70-A00 BoltSTUD, 6X28 |
90041-R70-A00 |
US $1.89 |
||
|
11
|
11
90042-R70-A00 BoltSTUD, 8X60 |
90042-R70-A00 |
US $6.44 |
||
|
12
|
12
90043-R70-A00 BoltFLANGE, 8X18 |
90043-R70-A00 |
US $2.73 |
||
|
13
|
13
91301-PLC-000 O-ring7.47X3.6 |
91301-PLC-000 |
from US $1.80 |
||
|
14
|
14
91301-RDV-J01 O-ring7.52X3.52 |
91301-RDV-J01 |
from US $3.22 |
||
|
15
|
15
91302-RDV-J01 O-ring8.9X2.9 |
91302-RDV-J01 |
from US $4.27 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
19
|
19
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
20
|
20
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
