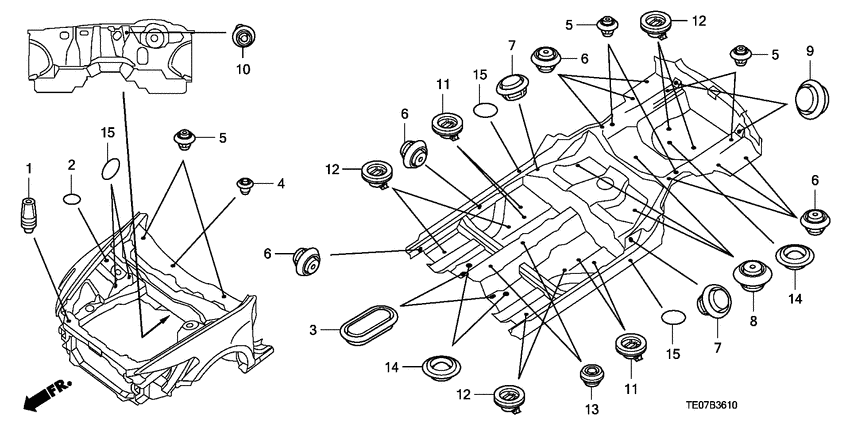

Grommet (FRONT) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74827-SK8-003 StopperTRUNK LID |
74827-SK8-003 |
US $3.89 |
||
|
2
|
2
75826-634-300 SealINSIDE PANEL, 15MM |
75826-634-300 |
from US $1.63 |
||
|
3
|
3
90615-S5A-003 PlugHOLE, 27X56 |
90615-S5A-003 |
US $2.73 |
||
|
4
|
4
90807-SNA-003 Grommet7MM |
90807-SNA-003 |
US $1.33 |
||
|
5
|
5
90811-SNA-003 Grommet11MM |
90811-SNA-003 |
US $1.89 |
||
|
6
|
6
90815-SNA-003 Grommet15MM |
90815-SNA-003 |
from US $3.02 |
||
|
7
|
7
90825-SNA-003 Grommet25MM |
90825-SNA-003 |
US $2.73 |
||
|
8
|
8
90826-SNA-003 Grommet25MM (BURRING) |
90826-SNA-003 |
US $2.73 |
||
|
9
|
9
90835-SNA-003 Grommet35MM |
90835-SNA-003 |
US $3.08 |
||
|
10
|
10
90860-SA5-003 PlugHOLE, 16MM |
90860-SA5-003 |
US $2.77 |
||
|
11
|
11
91611-TA0-003 PlugFLOOR HOLE, 25MM |
91611-TA0-003 |
US $4.40 |
||
|
12
|
12
91612-TA0-003 PlugFLOOR HOLE, 25MM |
91612-TA0-003 |
from US $4.40 |
||
|
13
|
13
91613-SR3-003 GrommetSUB FRAME, 15MM |
91613-SR3-003 |
US $1.26 |
||
|
14
|
14
91615-SH3-000 CapFLOOR HOLE, 49MM |
91615-SH3-000 |
US $2.74 |
||
|
15
|
15
91619-SE0-000 SealDOOR HOLE, 30MM(BLACK) |
91619-SE0-000 |
from US $1.33 |
