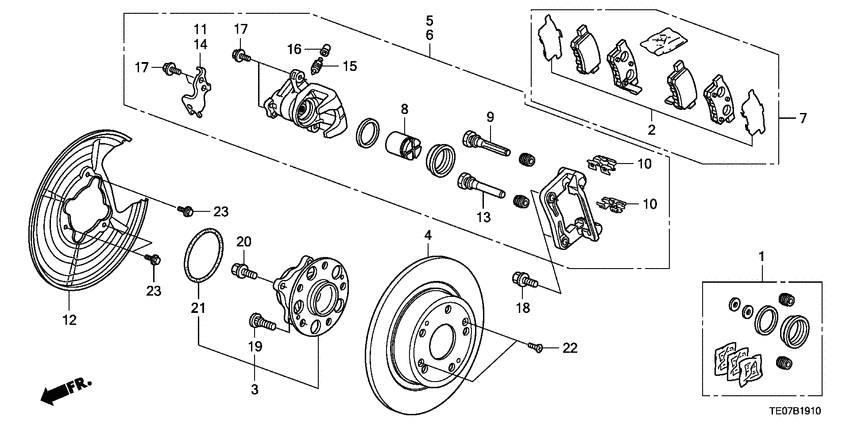

Rear brake Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01473-TA0-A00
Rear Caliper Seal Set
|
01473-TA0-A00 |
— | ||
| replacement | |||||
|
1
|
1
01473-TA0-A51 CALIPER SEAL SET, REAR |
01473-TA0-A51 |
from US $50.12 |
||
|
2
|
2
06435-TA0-A00 Shim setRR. |
06435-TA0-A00 |
US $8.14 |
||
|
3
|
3
42200-TA0-A51 Bearing assyRR. HUB UNIT |
42200-TA0-A51 |
from US $238 |
||
|
4
|
4
42510-TA0-A00 DiskRR. BRAKE |
42510-TA0-A00 |
US $128 |
||
|
5
|
5
43018-TA0-A01 Caliper sub assy.R. RR. |
43018-TA0-A01 |
US $380.16 |
||
|
6
|
6
43019-TA0-A01 Caliper sub assy.L. RR. |
43019-TA0-A01 |
US $380.16 |
||
|
7
|
7
43022-TA0-A00
Pad set
|
43022-TA0-A00 |
— | ||
| replacement | |||||
|
7
|
7
43022-TA0-A81 PAD SET RR |
43022-TA0-A81 |
US $102 |
||
|
8
|
8
43215-TA0-A01 Piston assy. |
43215-TA0-A01 |
US $68.52 |
||
|
9
|
9
43235-S84-A51 Pin a |
43235-S84-A51 |
from US $7.25 |
||
|
10
|
10
43244-TA0-A01
Retainer
|
43244-TA0-A01 |
— | ||
| replacement | |||||
|
10
|
10
43244-TA0-A02 Retainer |
43244-TA0-A02 |
from US $3.83 |
||
|
11
|
11
43247-TA0-A01 ArmR. |
43247-TA0-A01 |
US $14.65 |
||
|
12
|
12
43253-TA0-A00 GuardRR. SPLASH |
43253-TA0-A00 |
US $40.99 |
||
|
13
|
13
43262-S84-A51 Pin b |
43262-S84-A51 |
from US $7.25 |
||
|
14
|
14
43267-TA0-A01 ArmL. |
43267-TA0-A01 |
US $14.65 |
||
|
15
|
15
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
16
|
16
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
17
|
17
45240-SC2-003 BoltFLANGE, 8X22 |
45240-SC2-003 |
from US $3.03 |
||
|
18
|
18
90103-SJK-000 BoltCALIPER MOUNTING |
90103-SJK-000 |
US $2.31 |
||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.93 |
||
| replacement | |||||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
19
|
19
90113-SA0-006 BoltWHEEL (SAGA) |
90113-SA0-006 |
from US $2.59 |
||
| replacement | |||||
|
19
|
19
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
20
|
20
90160-TA0-A00 Bolt-washer12X44 |
90160-TA0-A00 |
US $4.62 |
||
|
21
|
21
91352-TA0-A51 O-ring71X2.4 (NOK) |
91352-TA0-A51 |
US $3.36 |
||
|
21
|
21
91352-TA0-A52 O-ring71X2.4 (UCHIYAMA) |
91352-TA0-A52 |
US $3.36 |
||
|
22
|
22
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
23
|
23
95701-060-120-5 BoltFLANGE, 6X12 |
95701-060-120-5 |
from US $0.52 |
||
