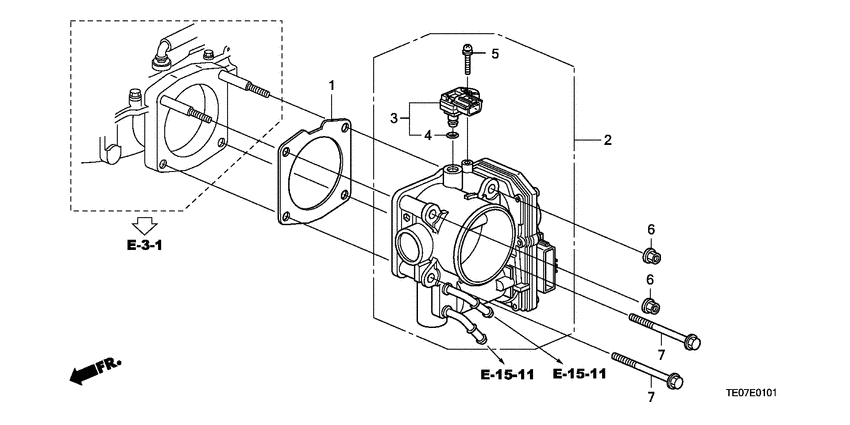

Throttle body (V6) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16176-RCA-A02 GasketTHROTTLE BODY |
16176-RCA-A02 |
from US $6.21 |
||
|
2
|
2
16400-RN0-A01
Throttle body
|
16400-RN0-A01 |
— | ||
|
3
|
3
37830-RNA-A01 Sensor assyMAP |
37830-RNA-A01 |
from US $100.42 |
||
|
4
|
4
37835-PGK-A01 O-ring |
37835-PGK-A01 |
from US $2.15 |
||
|
5
|
5
93892-050-201-8 Screw-washer5X20 |
93892-050-201-8 |
from US $0.44 |
||
| replacement | |||||
|
5
|
5
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
6
|
6
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
7
|
7
95701-080-600-8 BoltFLANGE, 8X60 |
95701-080-600-8 |
from US $0.81 |
||
