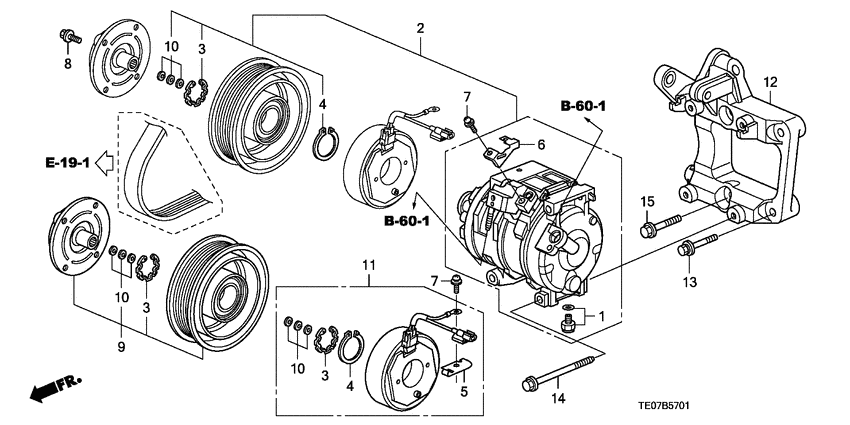

Air conditioner (COMPRESSOR; V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-P9K-E01
Valve sub assy.
|
38801-P9K-E01 |
— | ||
|
2
|
2
38810-R70-A01 Compressor comp. |
38810-R70-A01 |
US $896 |
||
|
3
|
3
38812-PH1-003 Ring bSNAP |
38812-PH1-003 |
US $4.06 |
||
|
4
|
4
38812-671-003 Ring aSNAP |
38812-671-003 |
from US $3.29 |
||
|
5
|
5
38816-R70-A01
Stay
|
38816-R70-A01 |
— | ||
|
6
|
6
38817-R70-A01
Stay
|
38817-R70-A01 |
— | ||
|
7
|
7
38827-PH7-003 Screw-washer5X8 |
38827-PH7-003 |
US $1.26 |
||
|
8
|
8
38829-PR3-003 BoltWASHER HEAD |
38829-PR3-003 |
US $1.61 |
||
|
9
|
9
38900-R70-A01 Clutch set |
38900-R70-A01 |
US $250.88 |
||
|
10
|
10
38912-PH1-N01 Plate setWASHER |
38912-PH1-N01 |
US $4.72 |
||
|
11
|
11
38924-R70-A01
Stator set
|
38924-R70-A01 |
— | ||
|
12
|
12
38930-R70-A00 Bracket comp.COMPRESSOR 00000000 - 9A600590 |
38930-R70-A00 |
US $106.88 |
||
|
12
|
12
38930-R70-A01 Bracket comp.COMPRESSOR 9A600591 - |
38930-R70-A01 |
US $98.56 |
||
|
13
|
13
95701-100-500-8 BoltFLANGE, 10X50 9A600591 - |
95701-100-500-8 |
from US $0.98 |
||
|
13
|
13
90001-R70-000 Bolt-washer10X55 00000000 - 9A600590 |
90001-R70-000 |
US $3.36 |
||
|
14
|
14
90023-P8A-A00 BoltFLANGE, 8X85 |
90023-P8A-A00 |
US $2.59 |
||
|
15
|
15
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
